Features:

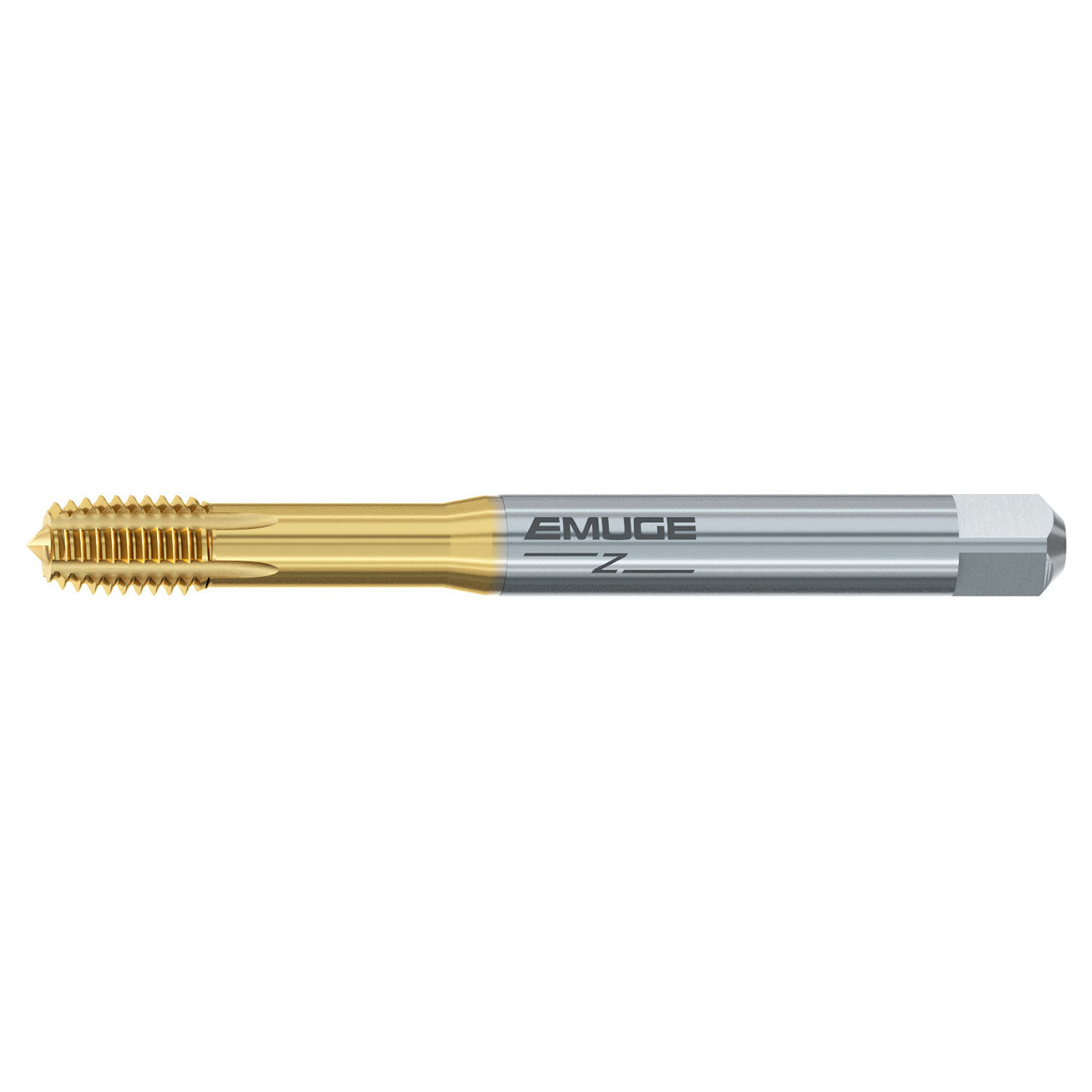

- The InnoForm Z roll form powdered metal tap is designed for many applications.
- Short threaded part and special polygon shape for less torque
- TIN-80 coated for heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B521Z700.0020 |
| Thread Size | M 2x0.4 |
| Thread Diameter Size | M 2 |
| Thread Length (mm) | 4.00mm |
| Overall Length (mm) | 45.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-80 |
| Product Type | Straight Flute Tap |
