Features:

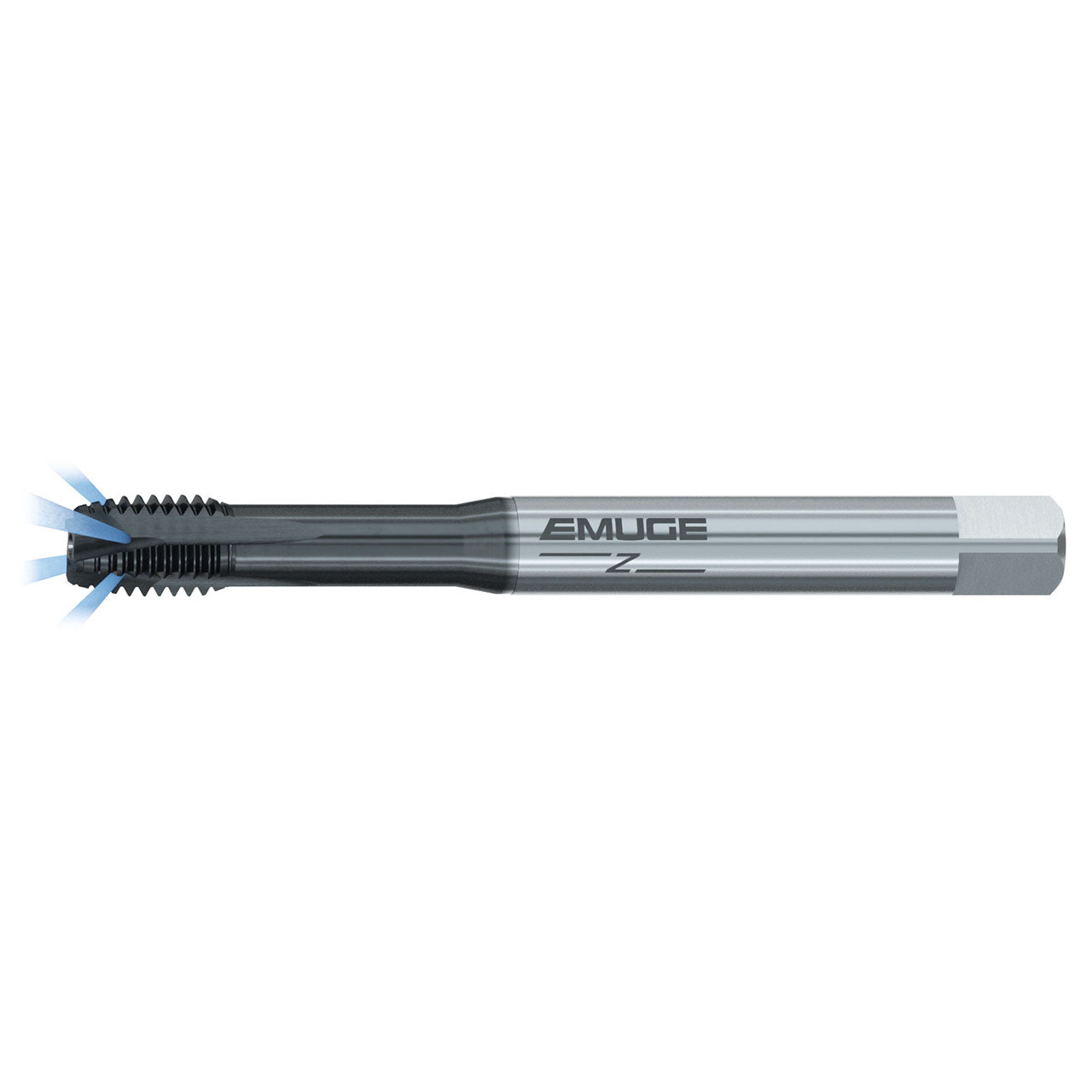

- Rekord B-Z is a straight flute for short chipping materials in through hole applications.
- Radial coolant fed to maximize chip evacuation and improve thread quality
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B108A601.0080 |
| Thread Size | M 8x1.25 |
| Thread Diameter Size | M 8 |
| Overall Length (mm) | 90.00mm |
| Flute Length (mm) | 35.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Class of Fit | Oversize |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | HSSE-PM |
| Coating | GLT-1 |
| Product Type | Straight Flute Tap |
