Features:

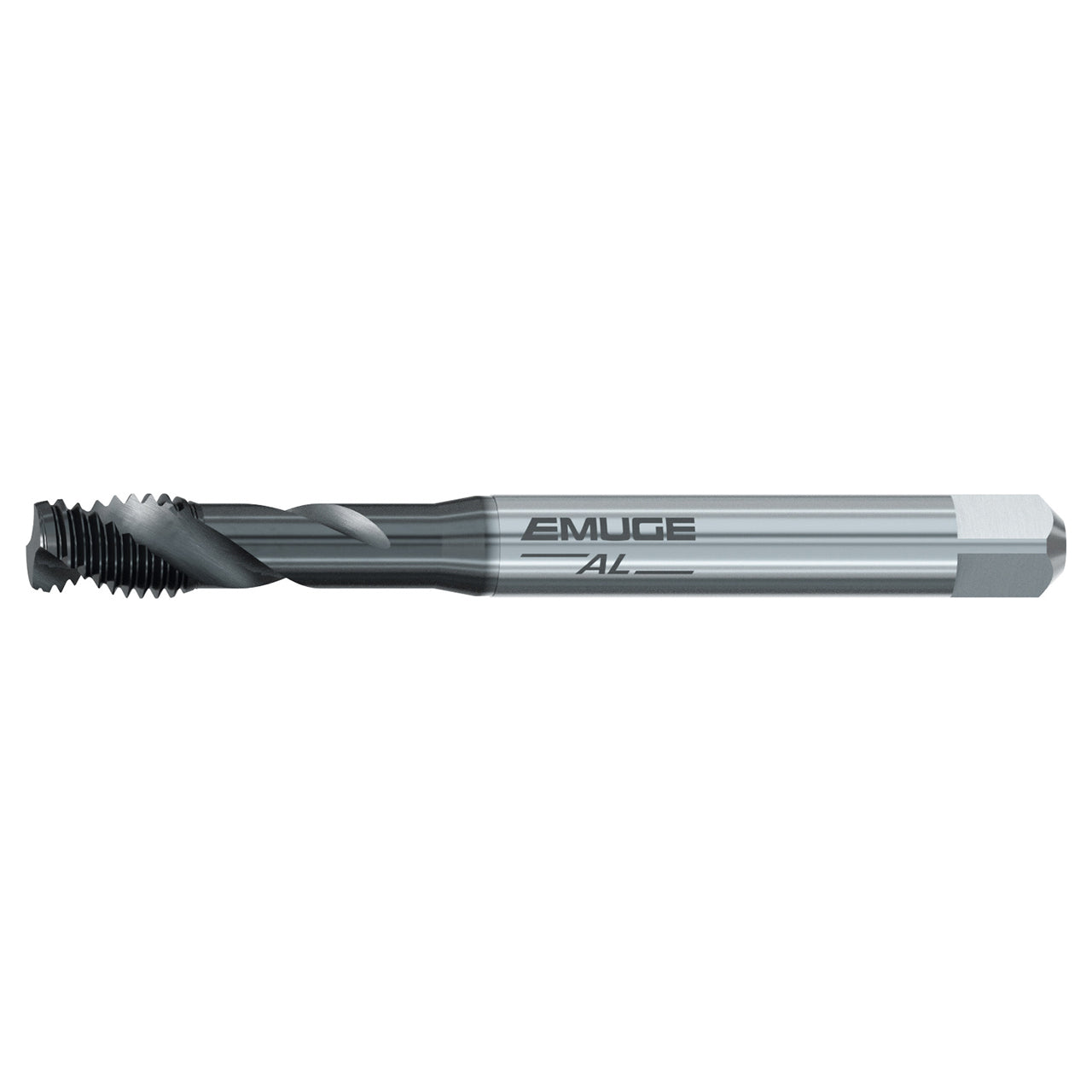

- The Enorm AL design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- GLT-8 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B051S800.0030 |
| Thread Size | M 3x0.5 |
| Thread Diameter Size | M 3 |
| Thread Standard | M |
| Thread Pitch (mm) | 0.50mm |
| Tap Square (mm) | 2.70mm |
| Thread Length (mm) | 5.00mm |
| Overall Length (mm) | 56.00mm |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Flute Helix Angle (Degree) | 35 Degree |
| Cutting Edge Material | HSSE |
| Coating | GLT-8 |
| Tool Type | EMUGE AL |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
