Features:

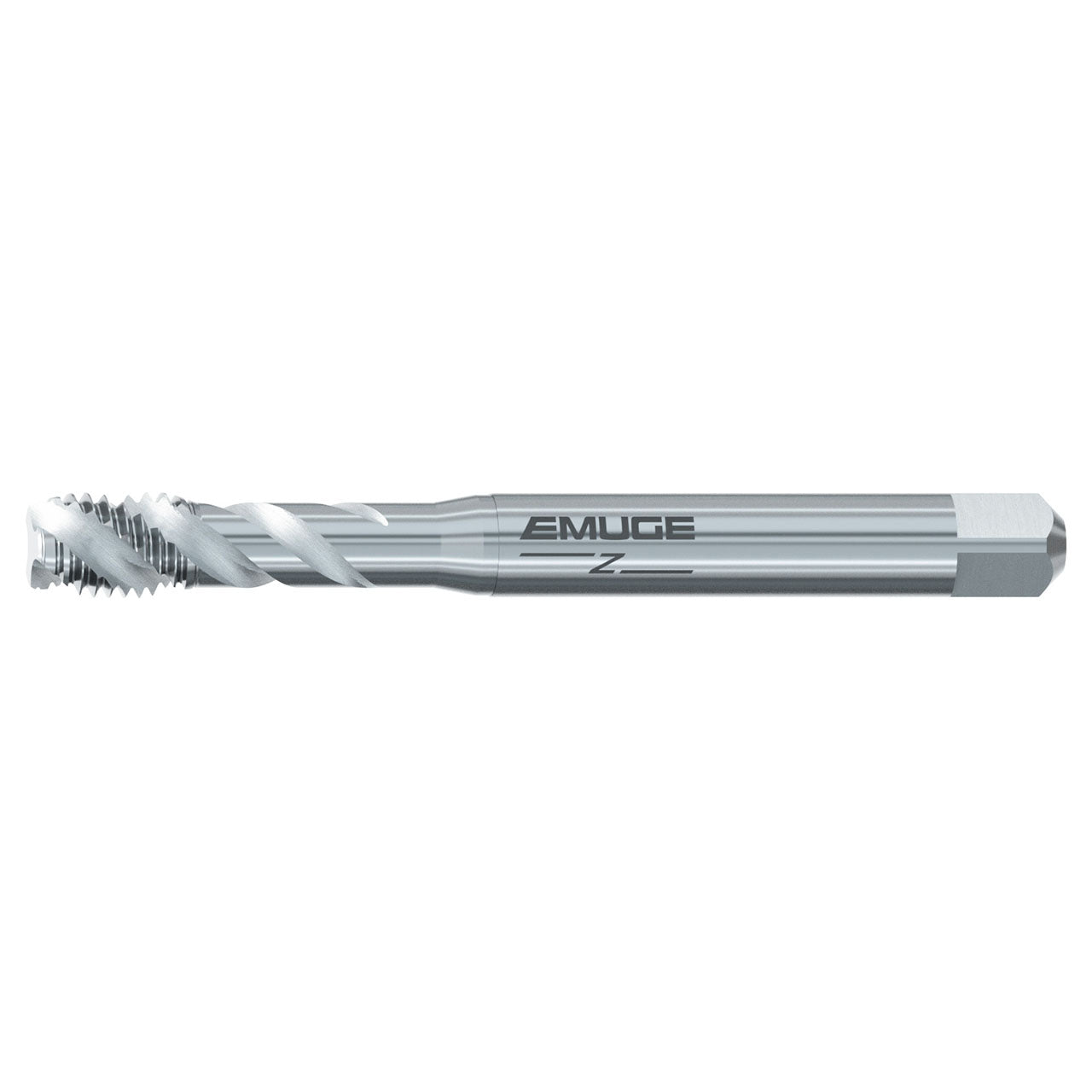

- The Enorm Z/E design is typically for blind hole threads in long chipping materials.
- The fast spiral flute provides good chip removal from blind holes
- Bright, uncoated surface finish
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B0513500.5639 |
| Thread Size | 1/4"-28 |
| Thread Diameter Size | 1/4" |
| Thread Per Inch (TPI) | 28 TPI |
| Length Group | DIN Length |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | STI-UNF |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Product Type | Spiral Flute Tap |
