Features:

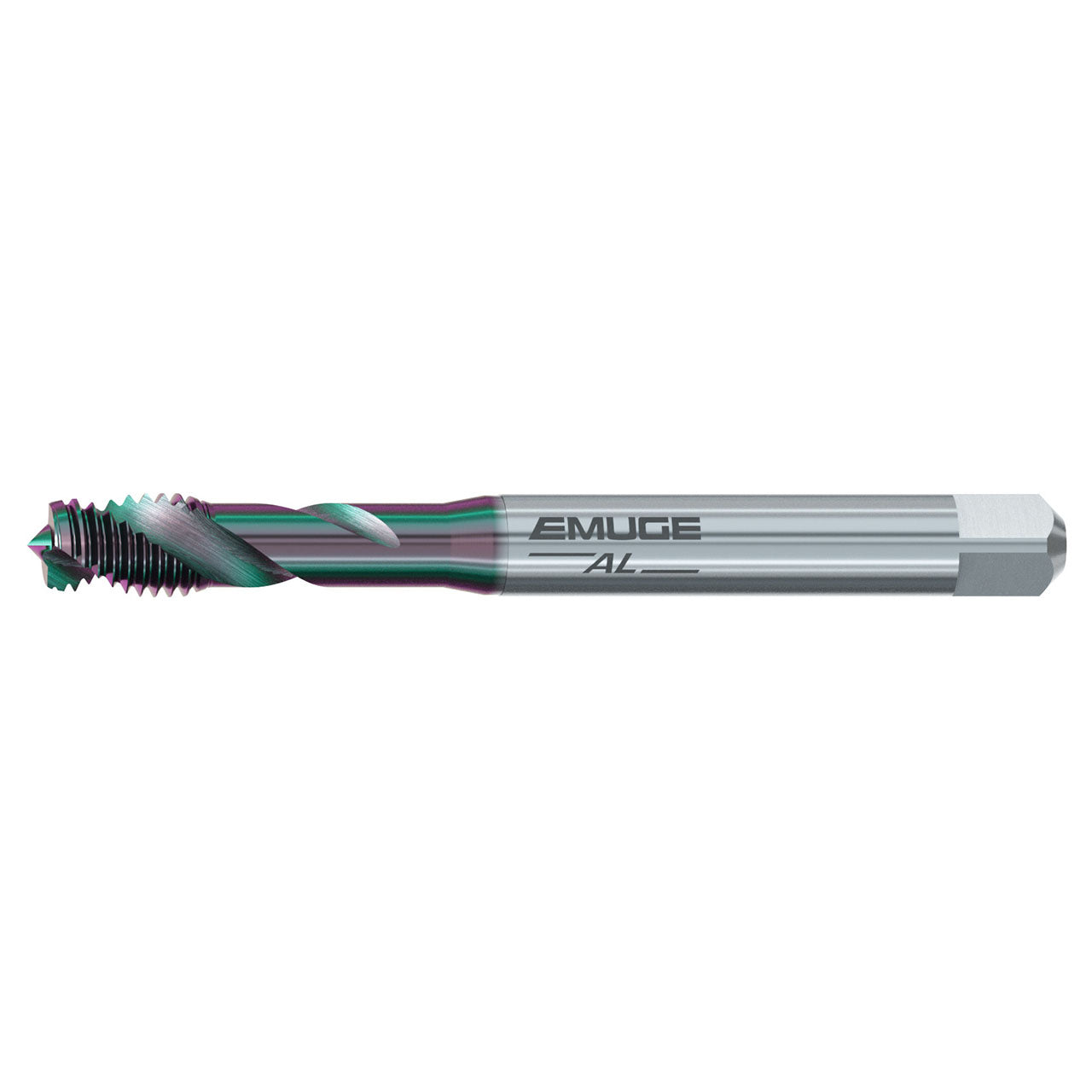

- Rekord B-AL tap is designed for wrought aluminum materials.
- Designed for use in CNC-controlled machines
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | B0503G00.0973 |
| Thread Size | M 8x1.25 |
| Thread Diameter Size | M 8 |
| Tap Square (Decimal Inch) | 0.110" |
| Thread Length (Decimal Inch) | 0.276" |
| Overall Length (mm) | 100.00mm |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | STI-M |
| Thread Tolerance Class | 6H mod |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
