Features:

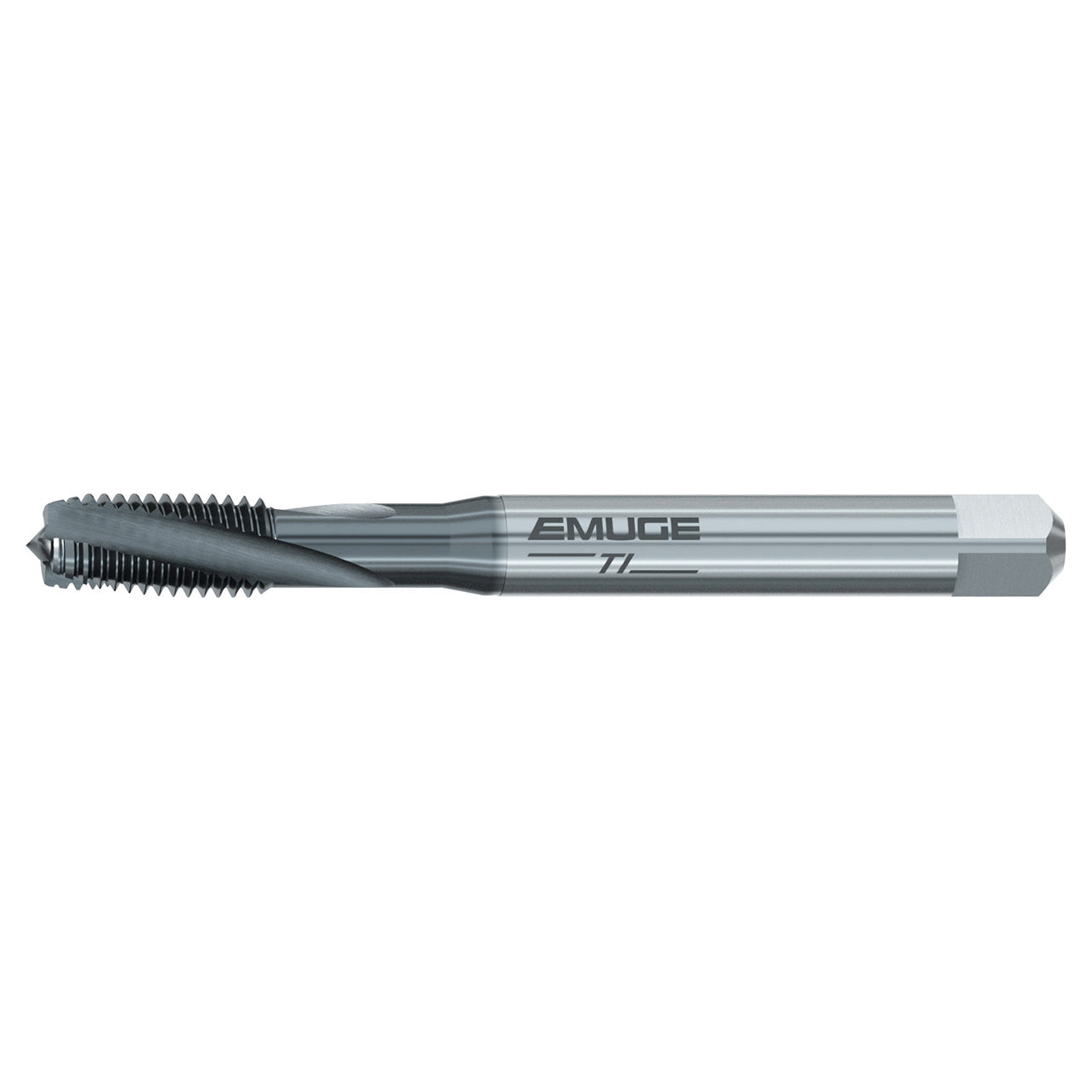

- Rekord D-TI tap is a slow spiral design for blind holes
- Best suited for titanium and high tensile strength materials
- Spiral point creates tight curled chips that are pushed ahead of the tap
Product Specifications
| Manufacturer Part Number | B0459611.1233 |
| Thread Size | MJ 6x1 |
| Thread Diameter Size | MJ 6 |
| Thread Standard | MJ |
| Thread Pitch (mm) | 1.00mm |
| Tap Square (mm) | 4.90mm |
| Thread Length (mm) | 17.00mm |
| Overall Length (mm) | 80.00mm |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Class of Fit | 4HX |
| Dimensional Standards | DIN / DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord D-TI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
