Features:

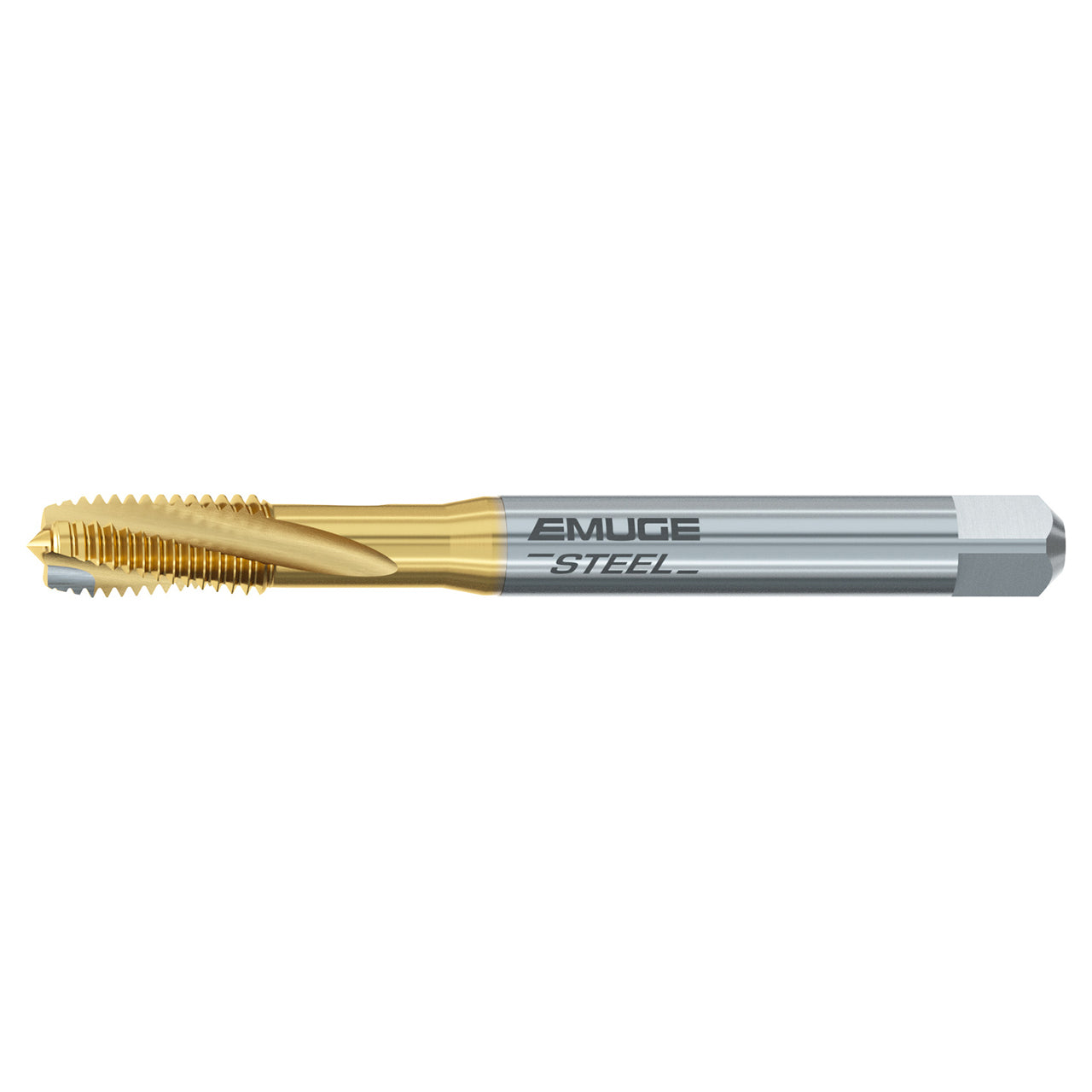

- Rekord DF tap is a slow spiral tap with an additional "F" style lip correction that helps create tightly rolled chip formations
- HSSE tap for steel and cast workpiece material applications
- For blind hole applications
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B0401400.0025 |
| Thread Size | M 2.5x0.45 |
| Thread Diameter Size | M 2.5 |
| Thread Standard | M |
| Thread Pitch (mm) | 0.45mm |
| Thread Length (mm) | 9.00mm |
| Overall Length (mm) | 50.00mm |
| Thread Tolerance Class | 6H |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TiN |
| Tool Type | Rekord DF |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
