Features:

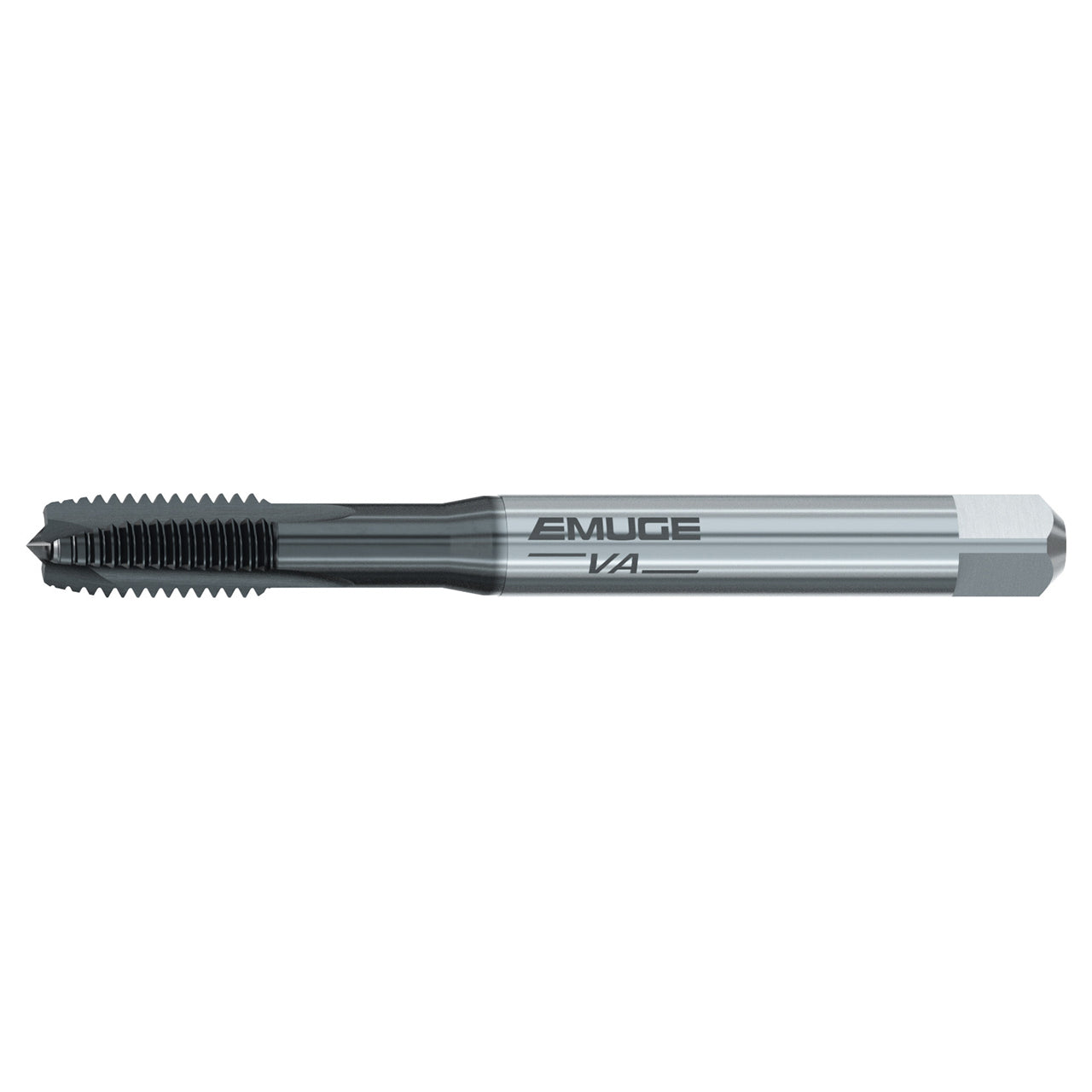

- Rekord B-VA design is for through hole applications
- Well suited for stainless steel and steel alloys
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B020C300.0100 |
| Thread Size | M 10x1.5 |
| Thread Diameter Size | M 10 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.50mm |
| Tap Square (mm) | 8.00mm |
| Thread Length (mm) | 22.00mm |
| Overall Length (mm) | 100.00mm |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Tool Type | Rekord B-VA |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
