Features:

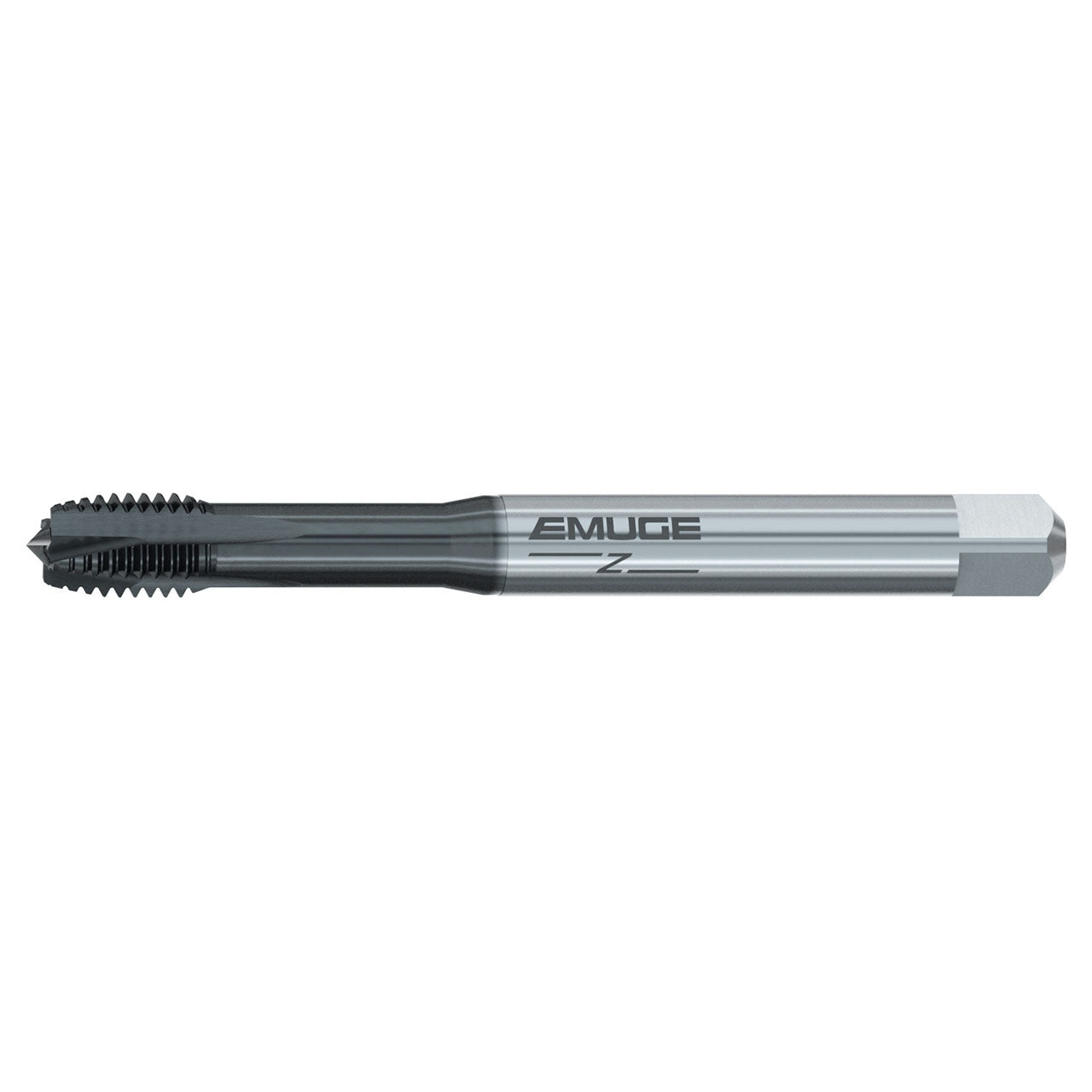

- Rekord B-Z design is typically for through hole applications in long-chipping materials.
- Spiral point creates tight curled chips that are pushed ahead of the tap
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B020A621.0025 |
| Thread Size | M 2.5x0.45 |
| Thread Diameter Size | M 2.5 |
| Overall Length (mm) | 50.00mm |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6GX |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Class of Fit | Oversize |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE-PM |
| Coating | GLT-1 |
| Product Type | Straight Flute Tap |
