Features:

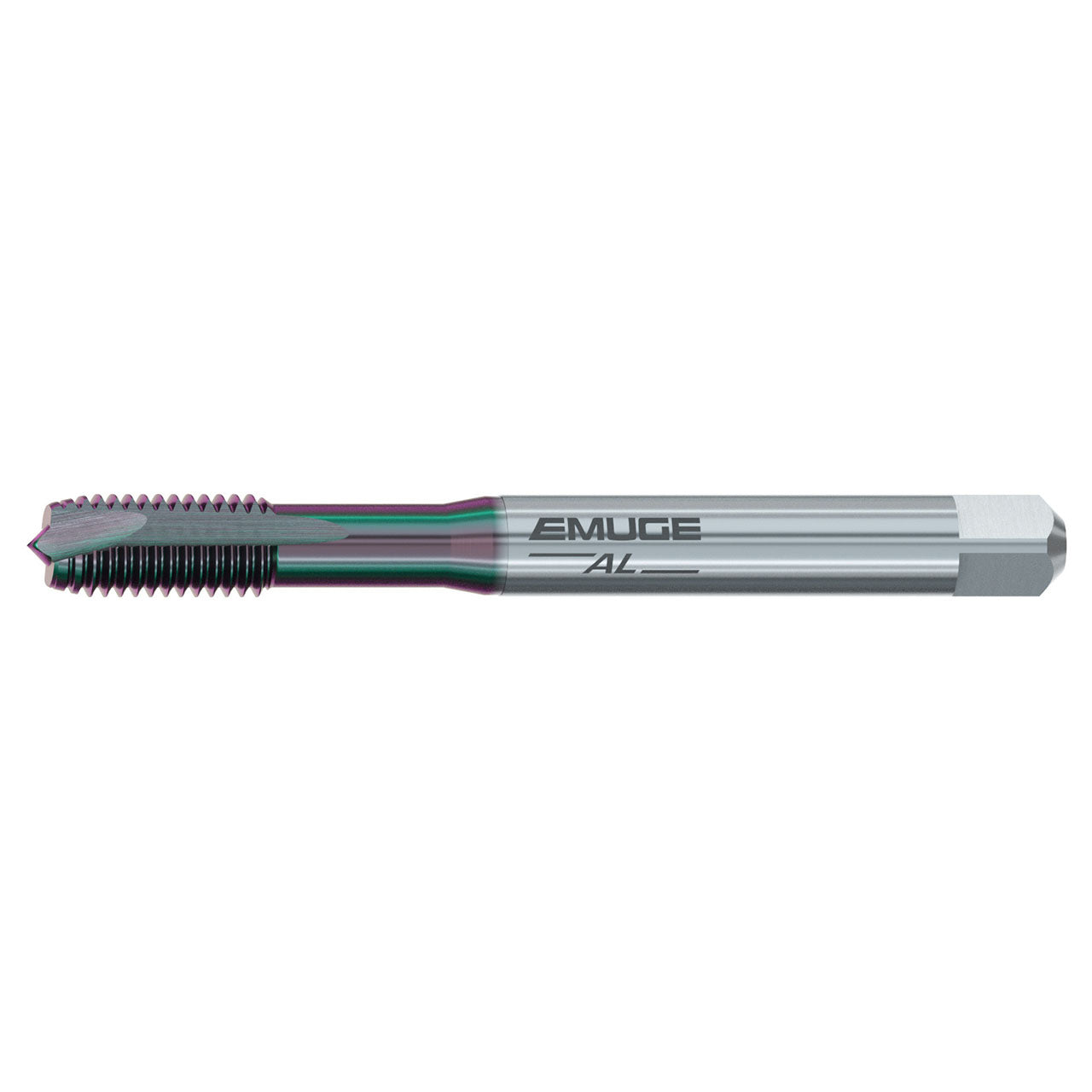

- Rekord B-AL tap is a plug style tap designed for wrought aluminum materials.
- The spiral point ensures optimum chip removal in the feed direction
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B0203G00.0020 |
| Thread Size | M 2x0.4 |
| Tap Square (mm) | 8.00mm |
| Thread Length (mm) | 22.00mm |
| Overall Length (mm) | 45.00mm |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Straight Flute Tap |
