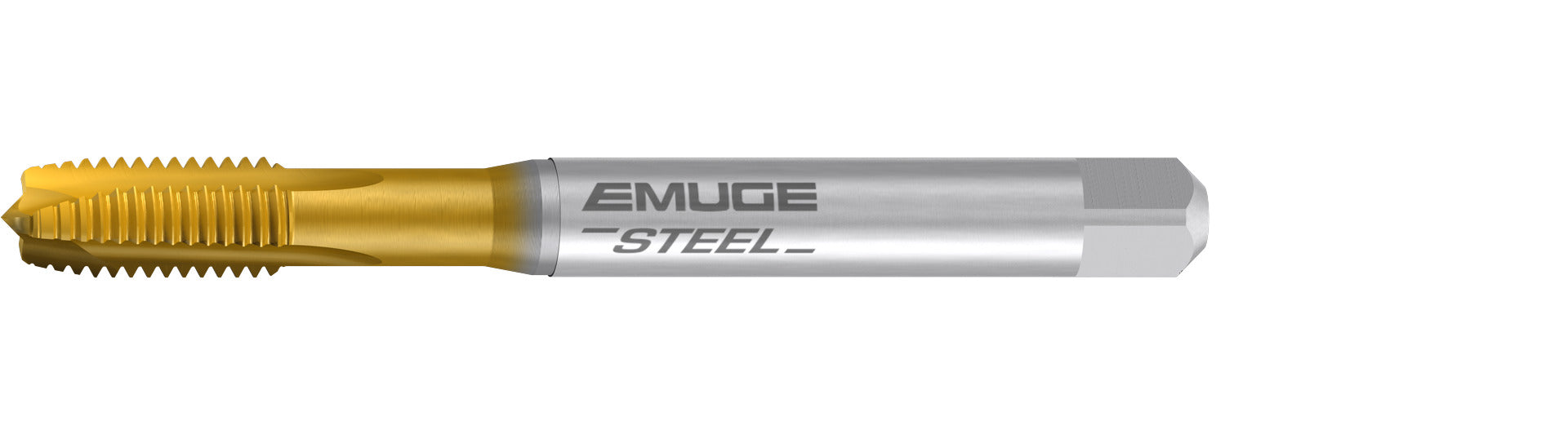

Product Specifications
| Chamfer | 4-5 P |
| Chamfer Form | B |
| Class | 6H |
| Pitch | 0.5 |
| Size | M 3 |
| Thread Standard | M |
| Coolant Fed | No |
| Coating/Finish | TIN |
| Material | HSSE |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 3.5 mm |
| Dimension Standards | DIN/DIN |
| Overall Length (mm) | 56 mm |
| Thread Length (mm) | 11 mm |
| Flute Direction | Right Hand |
