Features:
- FPC tool holder unique 1:16 worm gear design
- Provides high rigidity and clamping force
- Mechanical drive actuated with a hex wrench
- Patented design delivers 3 tons of traction force Simple design is highly accurate Collet-cone assembly helps absorbs cutting vibration
Product Specifications
| Manufacturer Part Number | 6496.052007 |
| Connection Diameter Workpiece Side (mm) | 2-20mm |
| Nose Diameter (mm) | 53.00mm |
| Projection Length (mm) | 78.00mm |
| Dimensional Standards | ISO 26623-1 |
| Connection Diameter Machine Side | FPC25 |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |

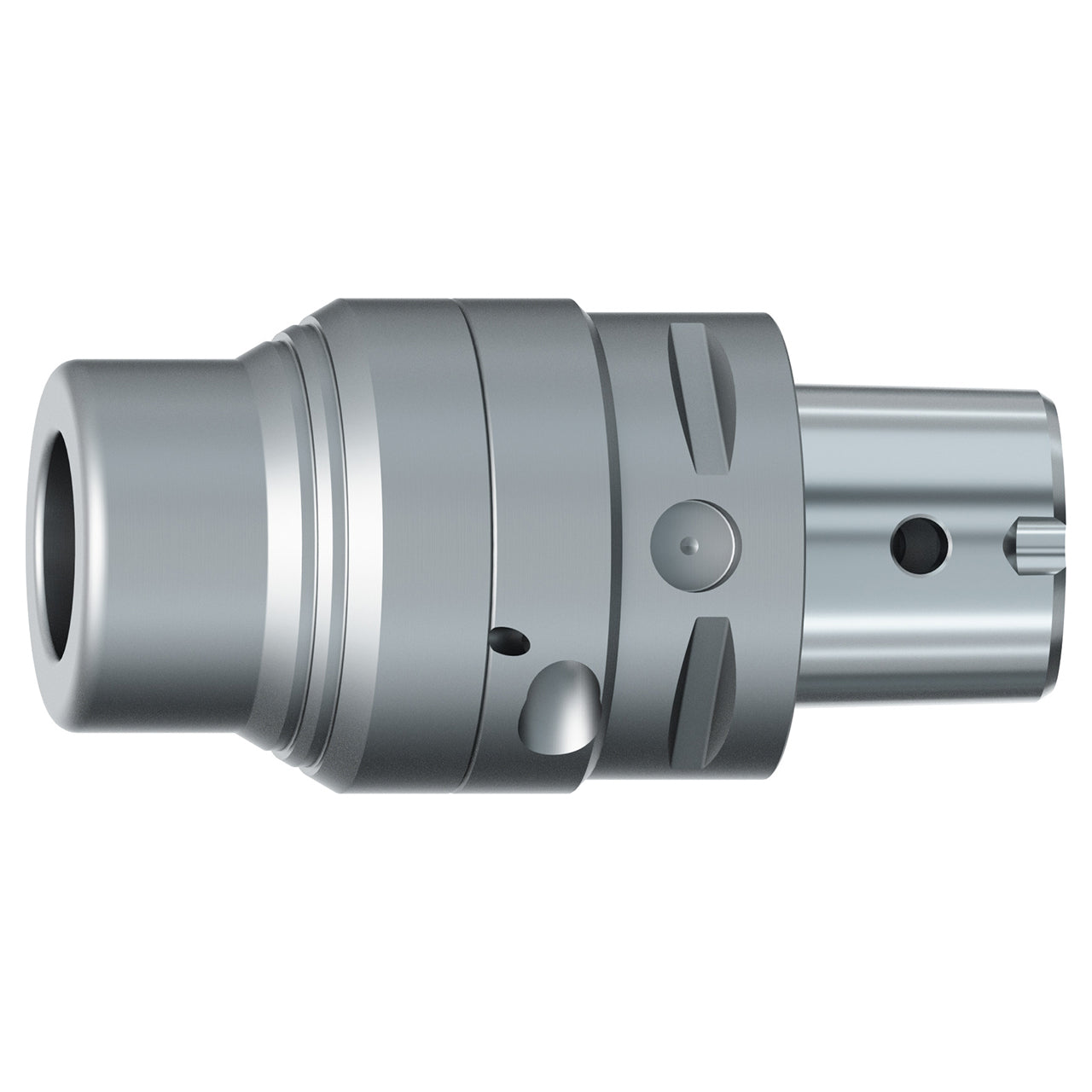

| Tool Type | FPC Tool Holder |
| Application | Milling, Drilling, Thread Milling |
| Product Type | Collet Chuck Holder |
