Features:
- Unique 1:16 worm gear design Provides high rigidity and clamping force
- Mechanical drive actuated with a hex wrench
- Provides high rigidity and clamping force
Product Specifications
| Manufacturer Part Number | 6476.122514 |
| Connection Diameter Workpiece Side (mm) | 16-32mm |
| Nose Diameter (mm) | 70.00mm |
| Projection Length (mm) | 116.00mm |
| Dimensional Standards | DIN 69893 |
| Connection Diameter Machine Side | SK50 |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Tool Type | FPC Tool Holder |
| Application | Milling, Drilling, Thread Milling |

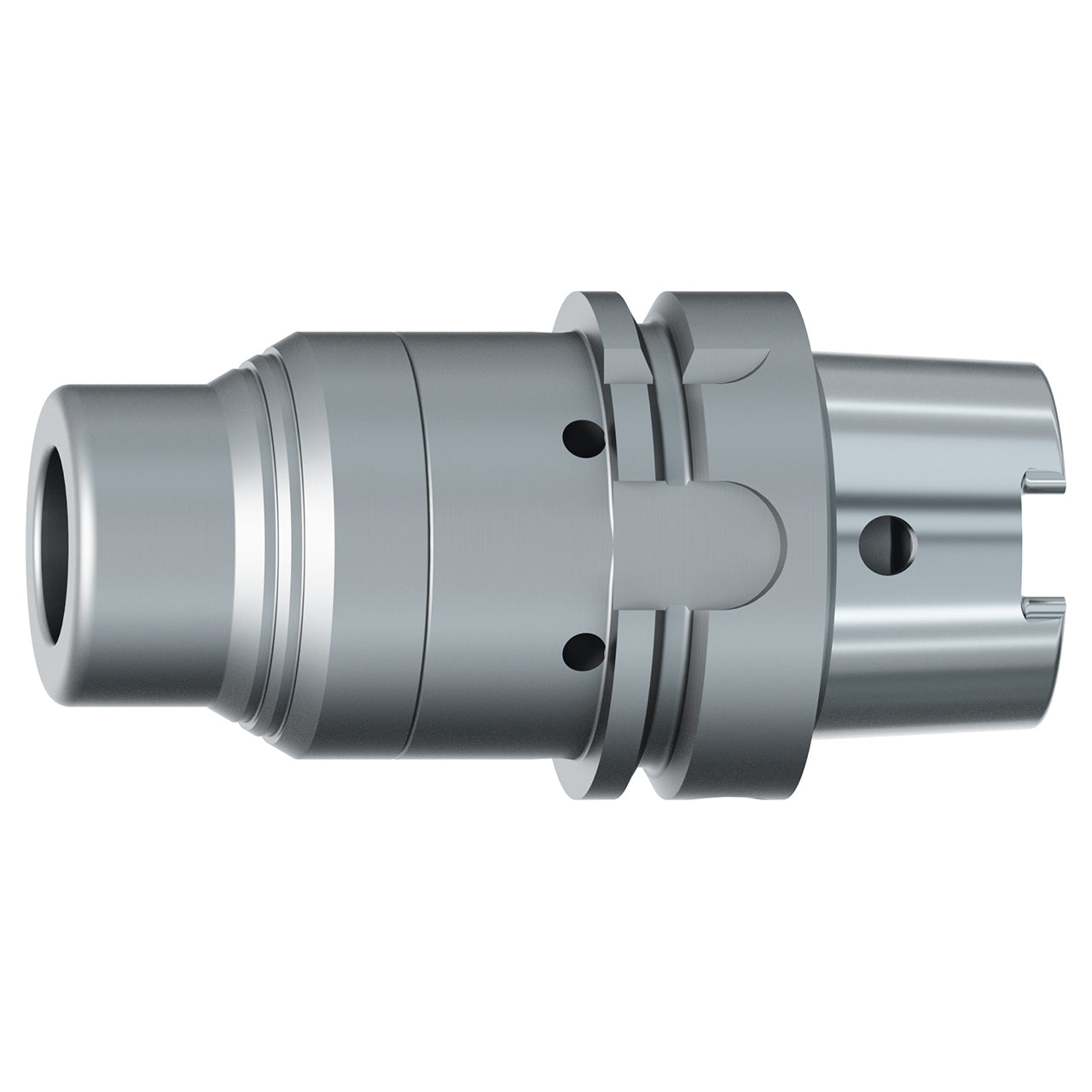

| Product Type | Collet Chuck Holder |
