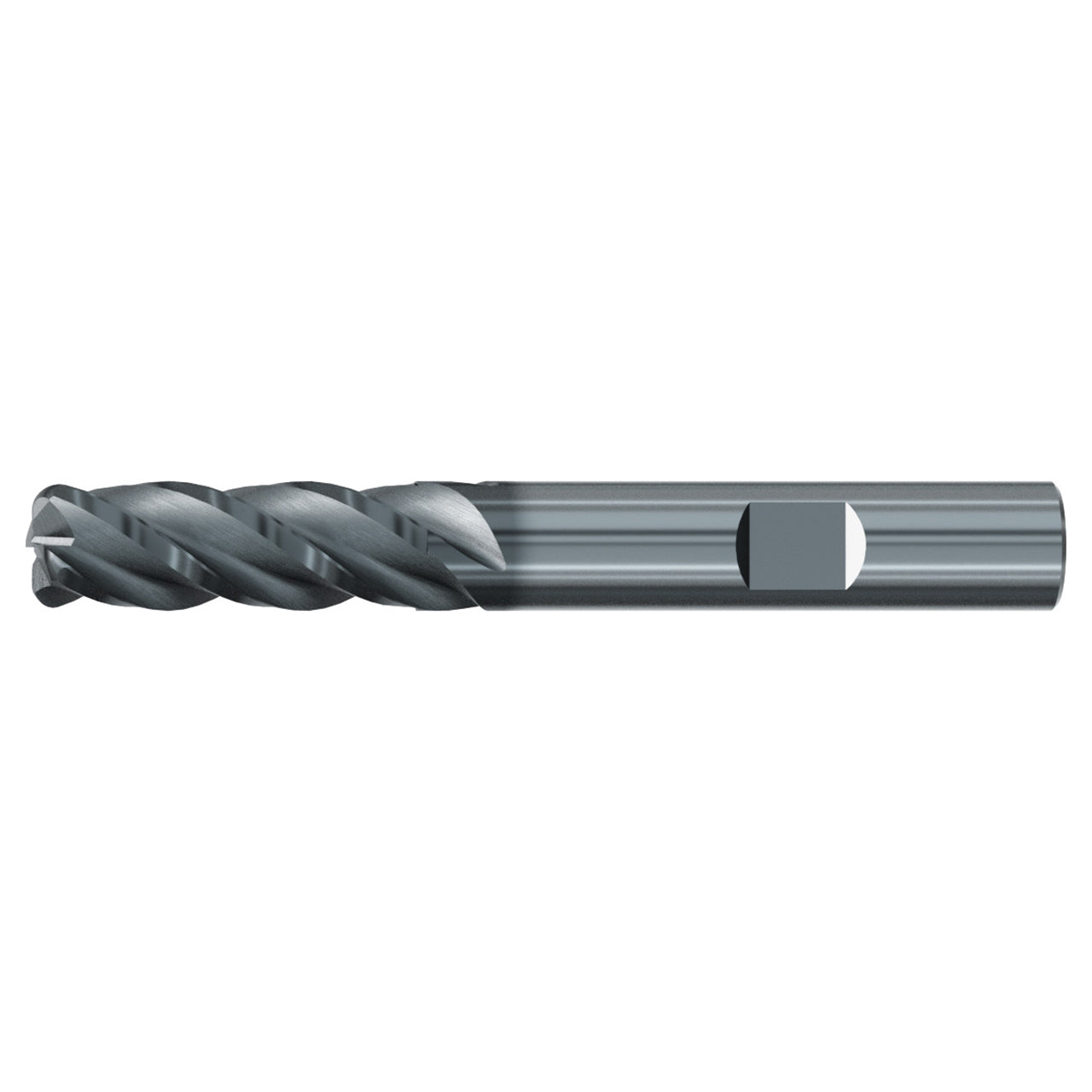

Features:
- TOP-Cut VAR carbide end mill with 4 flute design for roughing and finishing in almost all materials
- Variable helix geometry results in higher quality parts by decreasing chatter and harmonics
- Corner radius profile end mill designed to extend tool life in stainless steels, high temp alloys, and hardened steel
- ALCR coating for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3948L.037015 |
| Cutting Diameter (Inch) | 3/8" |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Corner Radius (Decimal Inch) | 0.015" |
| Overall Length (Inch) | 3" |
| Flute-Length (Inch) | 1-1/8" |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
