Features:

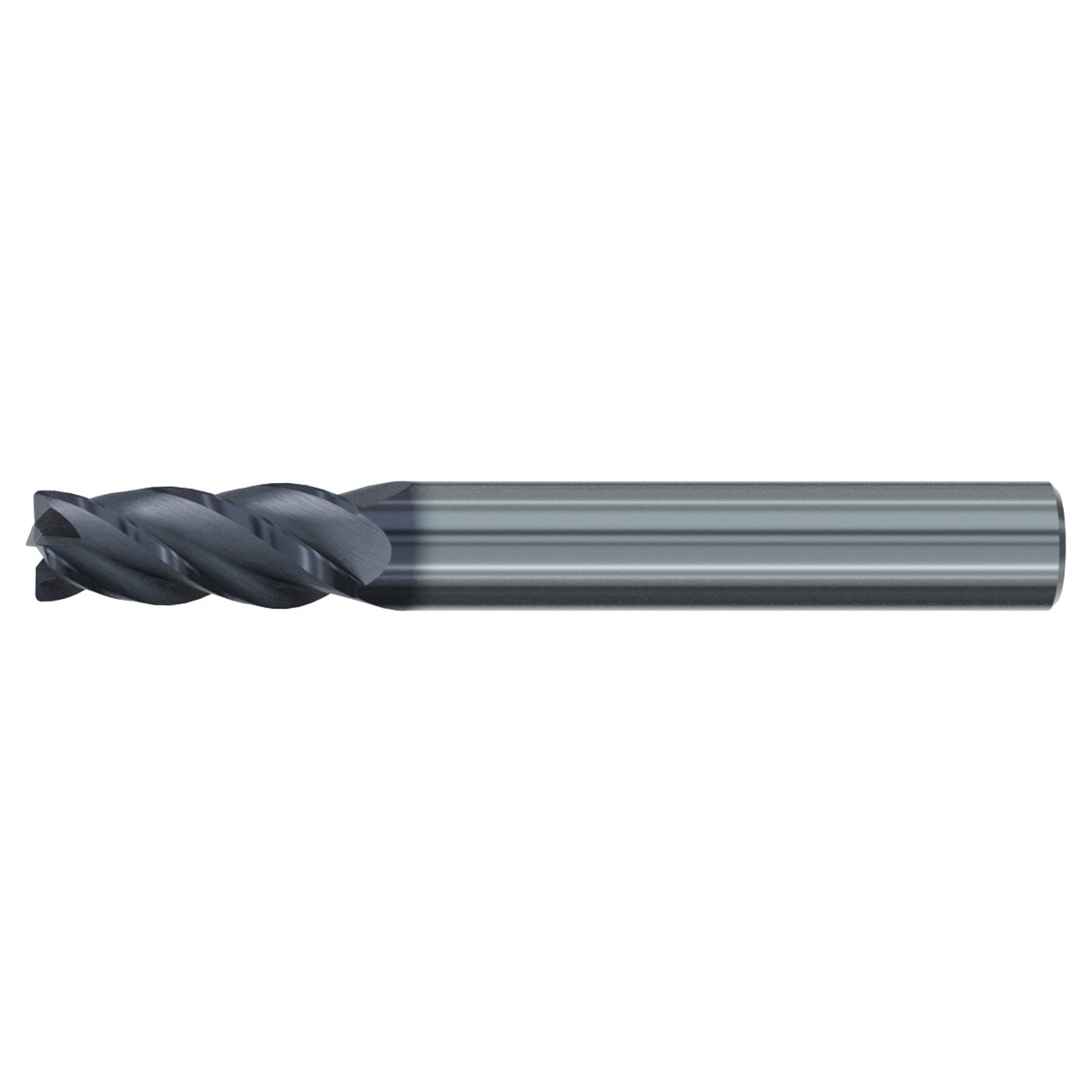

- Tapered carbide end mill, for pre-thread milling NPT-NPTF threads
- Design with four flutes and 1 47' taper angle
- Ideal for forming the correct taper on holes for subsequent NPT pipe thread milling
- TIALN-T21 coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3914A.050020 |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Overall Length (Inch) | 3" |
| Flute-Length (Inch) | 1-1/8" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN-T21 |
| Tool Type | Square End |
| End Mill - End Style | Taper End Mills |
| End Shape | Corner Radius |
| Application | Taper Thread Preparation |
| Product Type | Torus End Mill |
