Features:

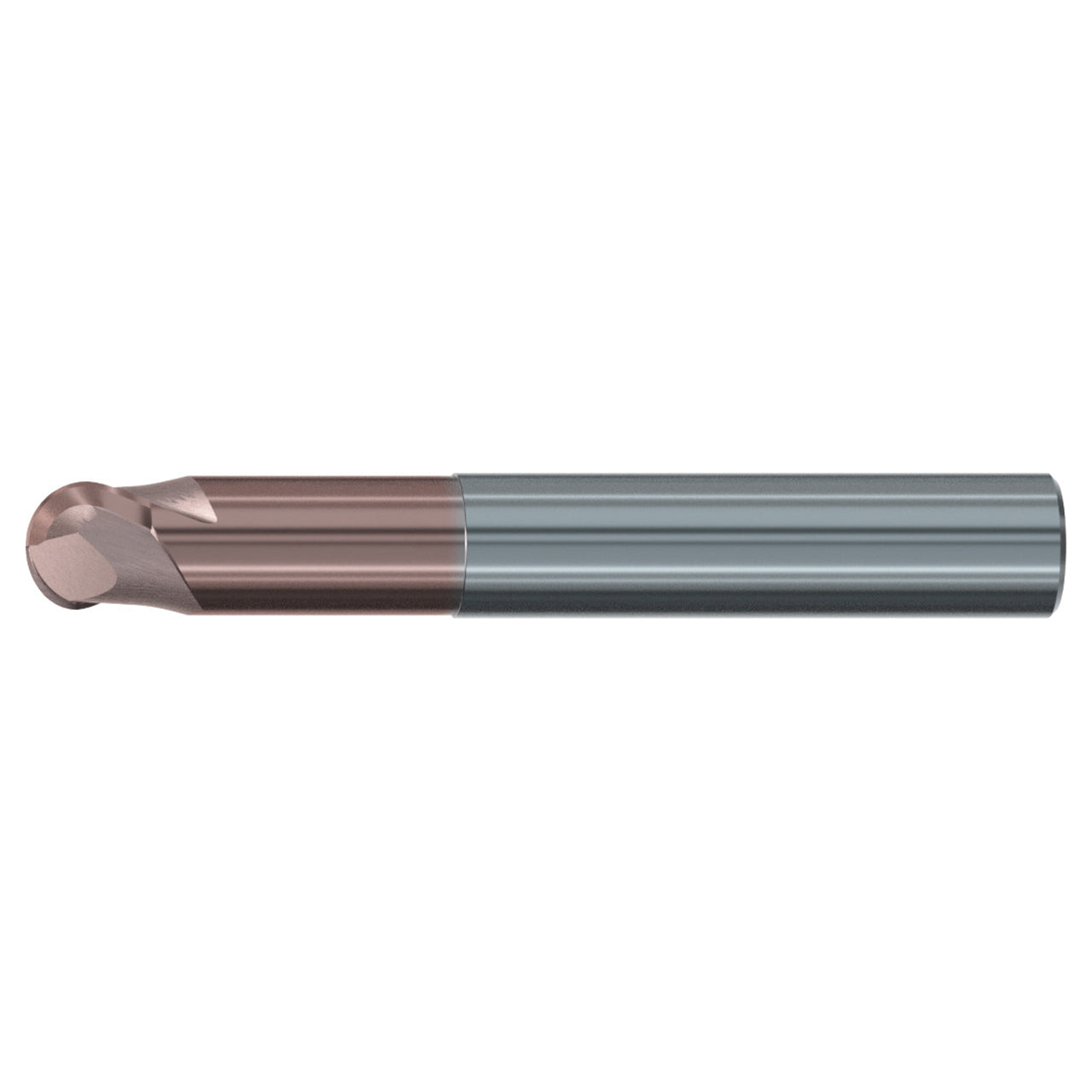

- Carbide ball-nose cutter Hard-Cut in short design (3xD) for roughing - and finishing applications in hardened workpiece materials
Product Specifications
| Manufacturer Part Number | 3827A.0005 |
| Cutting Diameter (Decimal Inch) | 0.020" |
| Cutting Diameter (mm) | 0.50mm |
| Shank Tolerance | h4 |
| Tool Cylindrical - Shank Style | HA |
| Flute Direction | Right Hand |
| Group Length | 3xD |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Hard-Cut |
| End Mill - End Style | Ball Nose |
| End Shape | Ball Nose |
| Application | Finishing |
| Product Type | Ball End Mill |
