Features:

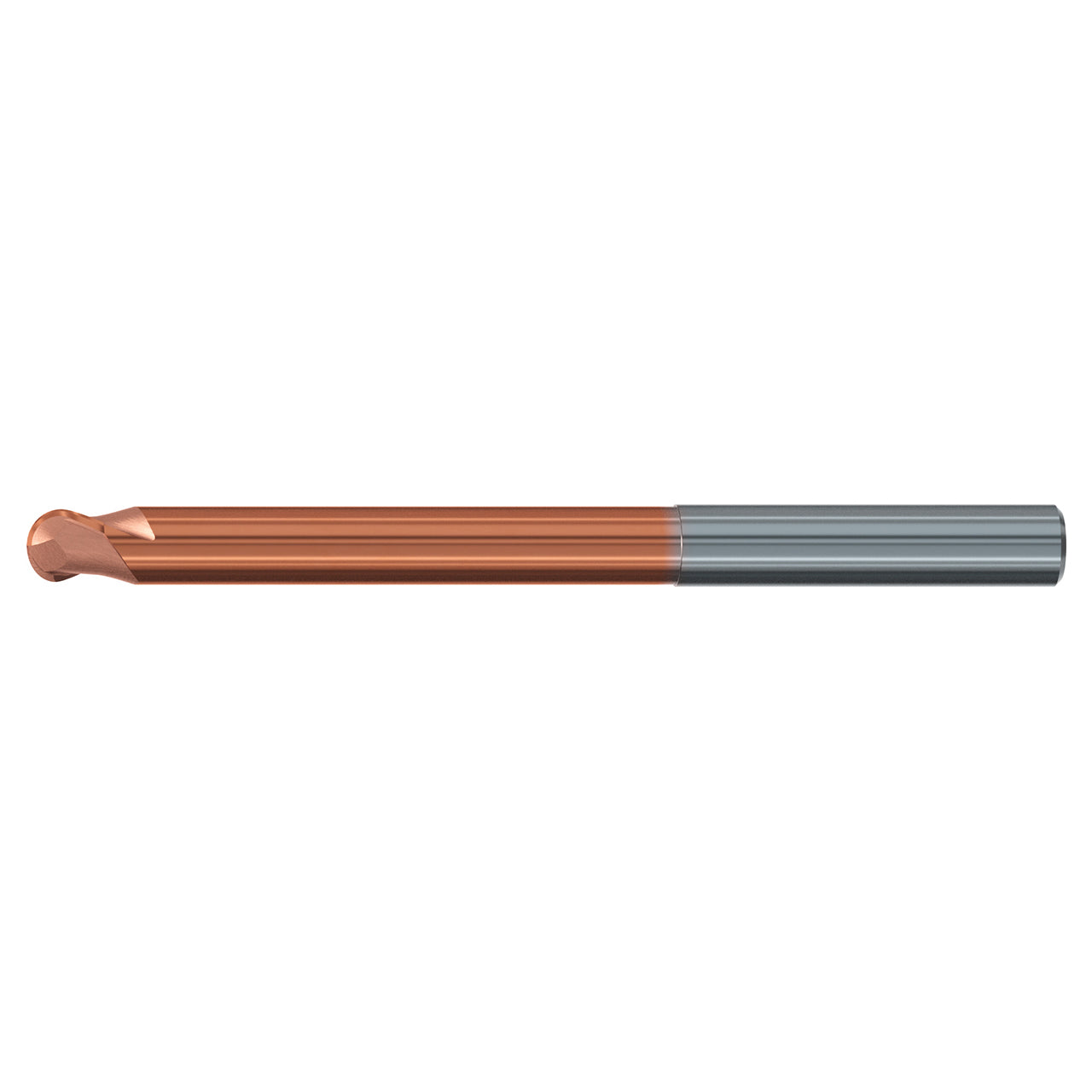

- TOP-Cut carbide ball nose end mill for roughing and finishing in almost all materials
- Unique tool geometry enable low-vibration machining and universal use in almost all materials and milling processes
- Patented chisel edge construction
- TIALN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3822A.008 |
| Cutting Diameter (Decimal Inch) | 0.315" |
| Cutting Diameter (mm) | 8.00mm |
| Overall Length (mm) | 102.00mm |
| Flute Length (mm) | 7.00mm |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | X-Long |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Ball Nose |
| End Mill - End Style | Ballnose End Mills |
| End Shape | Ball |
| Application | Finishing |
| Product Type | Ball End Mill |
