Features:

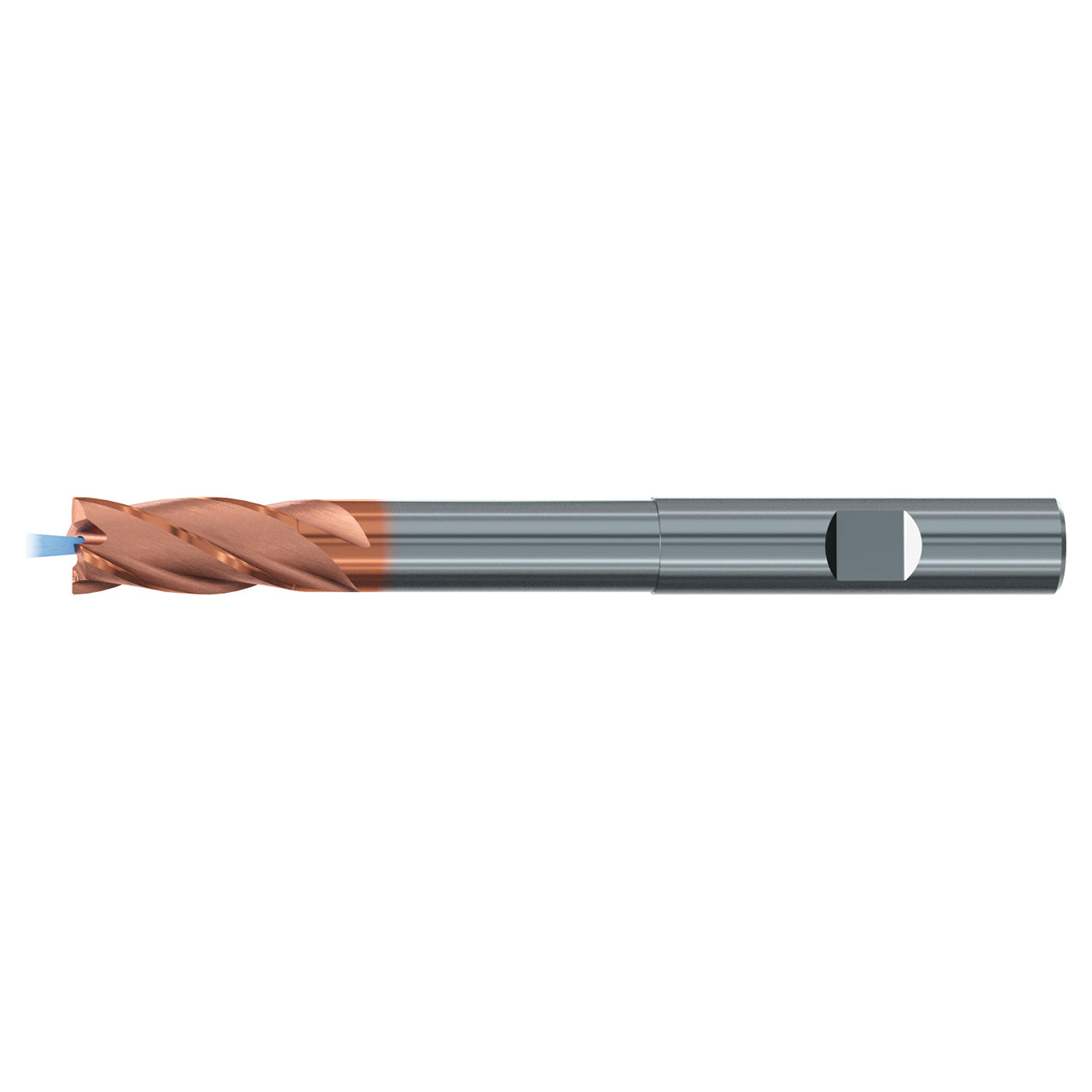

- TOP-Cut carbide end mill for roughing and finishing in almost all materials
- Unique geometry enables low-vibration machining and universal use in almost all materials and milling processes
- Axial coolant hole for maximum chip evacuation
- TIALN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3809AZ.004 |
| Cutting Diameter (Decimal Inch) | 0.157" |
| Cutting Diameter (mm) | 4.00mm |
| Overall Length (mm) | 62.00mm |
| Flute Length (mm) | 11.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Long Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
