Features:

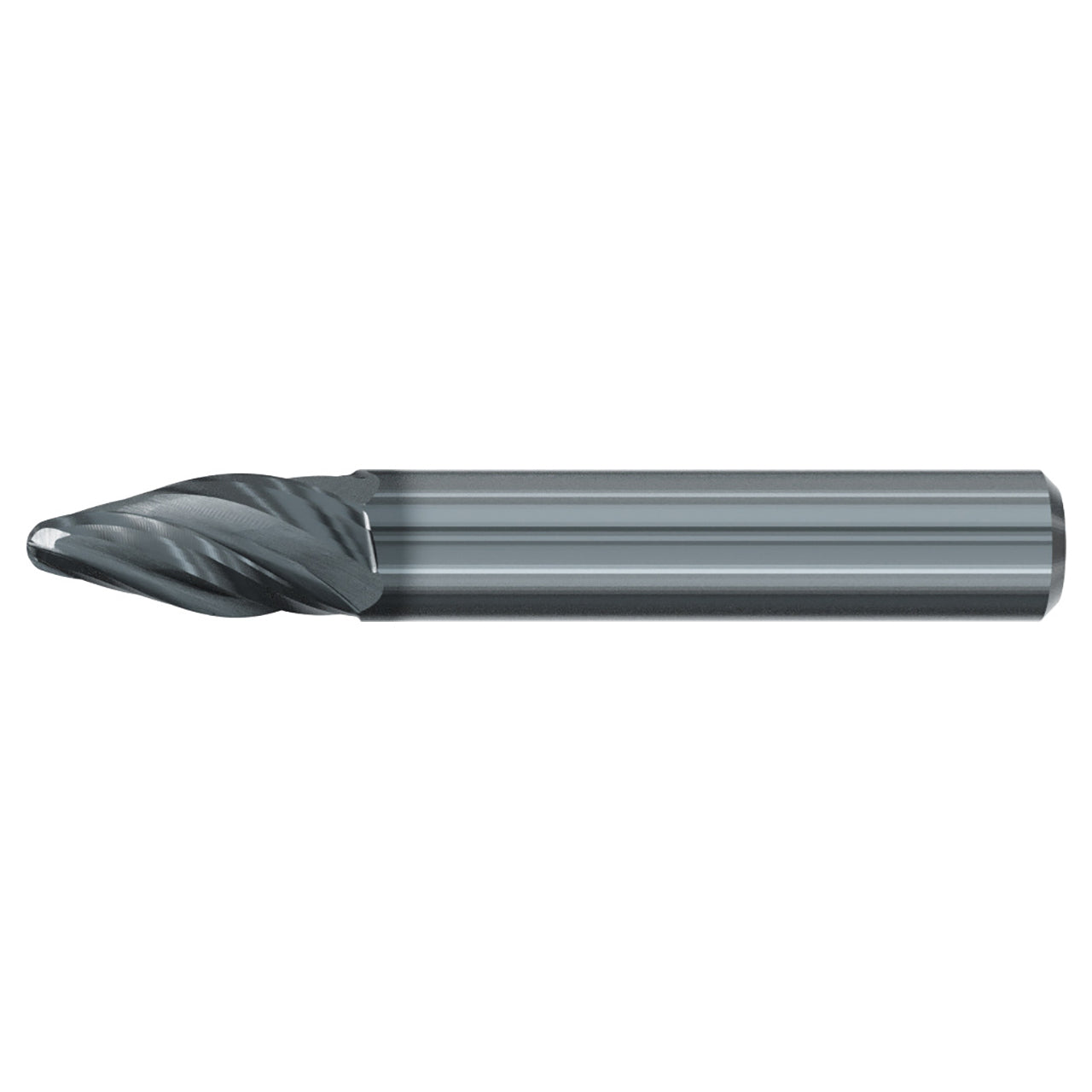

- Circle segment carbide end mill in oval form for finishing applications in many materials, including high-strength materials
- Special geometry allows larger line jumps with the same surface quality and time savings of up to 90%
- Low-vibration machining due to variable spacing
- ALCR coating for longer tool life and very good suitability for high-alloyed materials
Product Specifications
| Manufacturer Part Number | 3538L.05075A |
| Cutting Diameter (Decimal Inch) | 0.197" |
| Cutting Diameter (mm) | 5.00mm |
| Corner Radius (mm) | 75.00mm |
| Neck Length (mm) | 22.00mm |
| Overall Length (mm) | 62.00mm |
| Flute Length (mm) | 17.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Oval Form Cutter |
| End Mill - End Style | Tapered End Mills |
| End Shape | Circle Segment |
| Application | Finishing |
| Product Type | Barrel Cutter End Mill |
