Features:

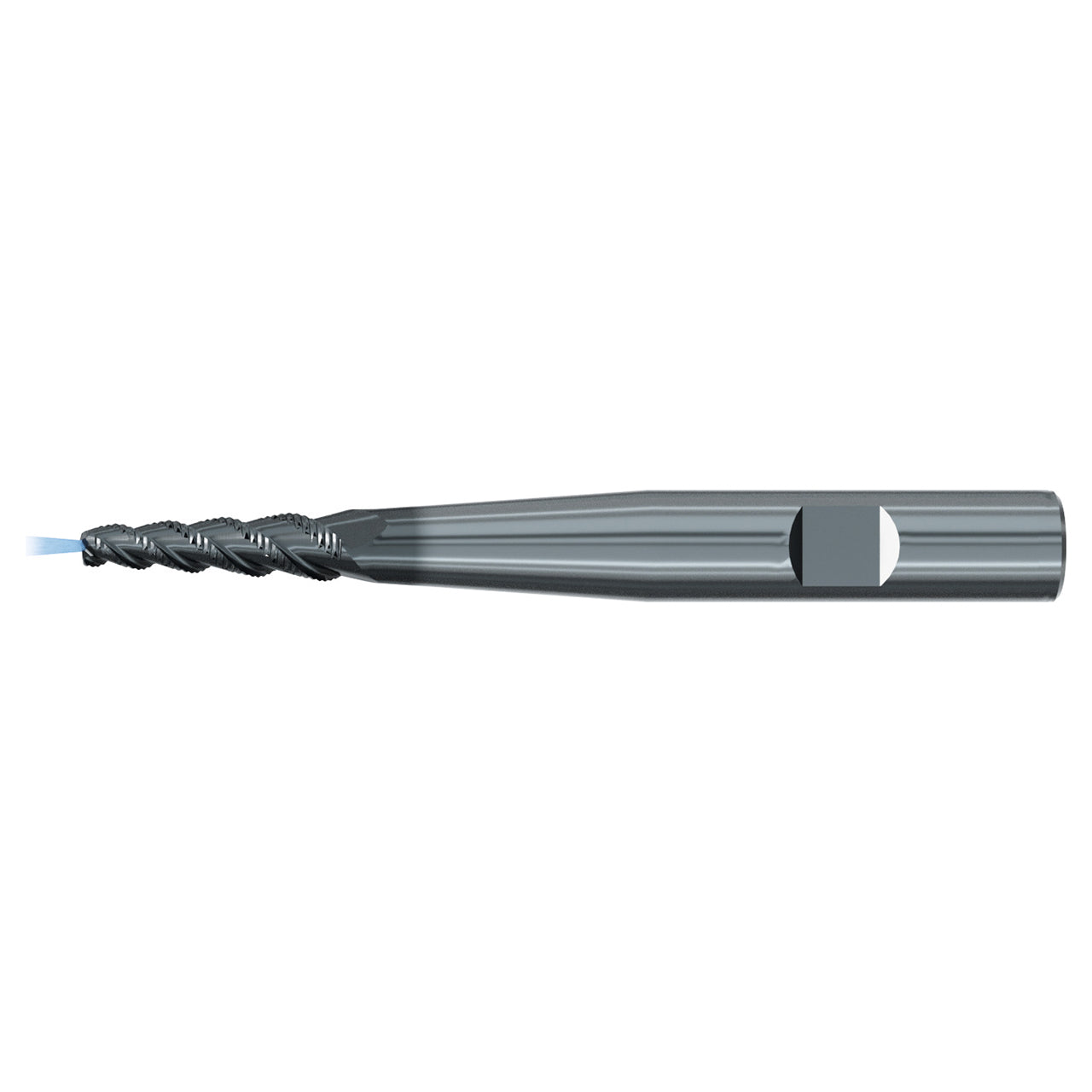

- Turbine tapered carbide torus end mill for roughing applications in high-strength materials, and nickel-based or titanium alloys
- Design with three flutes and 3 Degree taper angle
- Variable flute spacing for low-vibration machining
- Axial coolant hole for enhanced chip evacuation
Product Specifications
| Manufacturer Part Number | 3532LZ.03055A |
| Cutting Diameter (Decimal Inch) | 0.217" |
| Cutting Diameter (mm) | 5.50mm |
| Corner Radius (mm) | 1.00mm |
| Overall Length (mm) | 95.00mm |
| Flute Length (mm) | 25.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Regular |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Tapered Torus |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | TORUS |
| Application | Rougher |
| Product Type | Tapered Torus End Mill |
