Features:

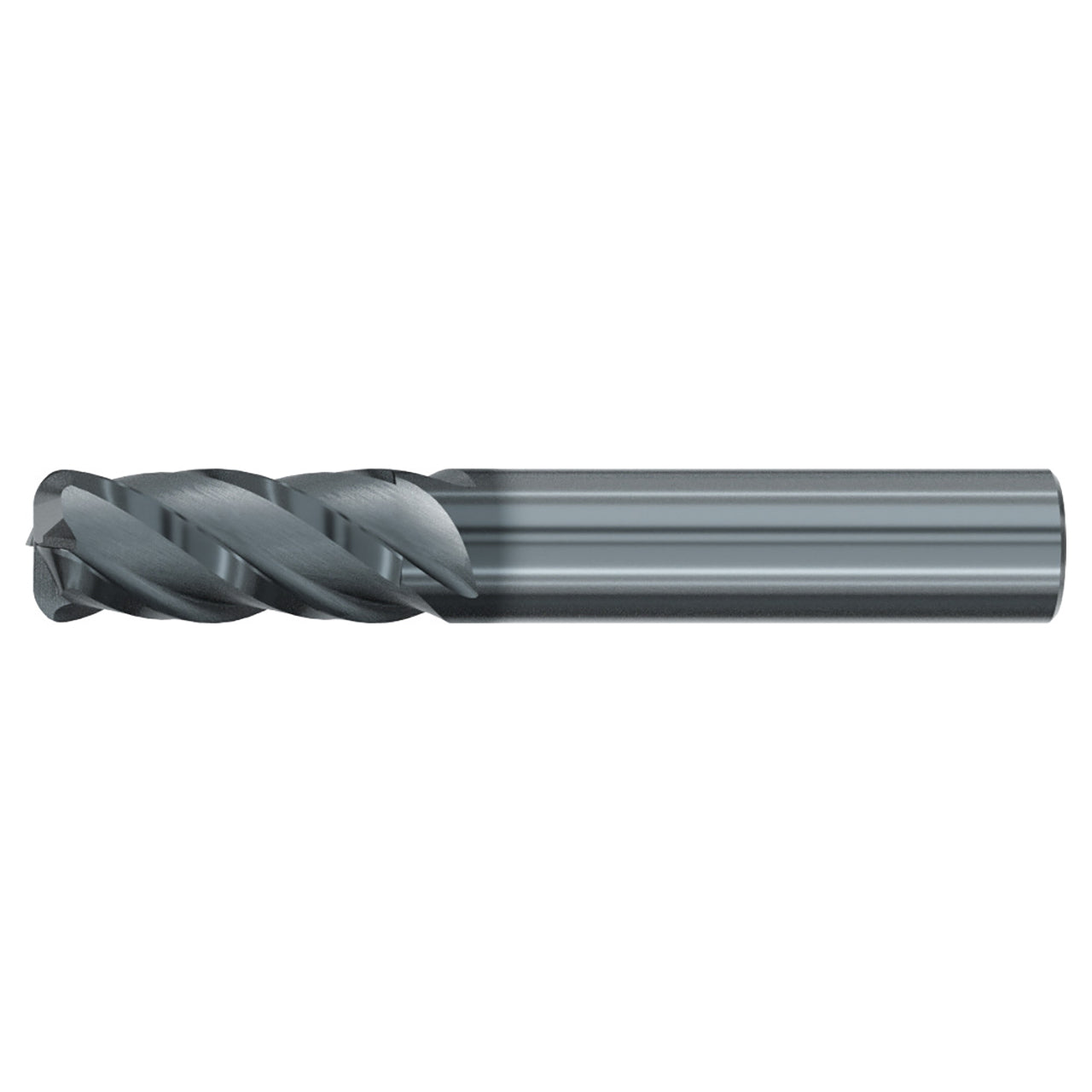

- TOP-Cut VAR carbide end mill 4 flute design for roughing and finishing in almost all materials
- Special tool geometry enable low-vibration machining and universal use in almost all materials and milling processes
- Wear resistant sub-micro grain carbide substrate
- ALCR coating for longer tool life and very good suitability for high-alloyed materials
Product Specifications
| Manufacturer Part Number | 2998L.025060 |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Corner Radius (Decimal Inch) | 0.060" |
| Overall Length (Inch) | 2-1/2" |
| Flute-Length (Inch) | 1-2" |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Corner Radius |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
