Features:

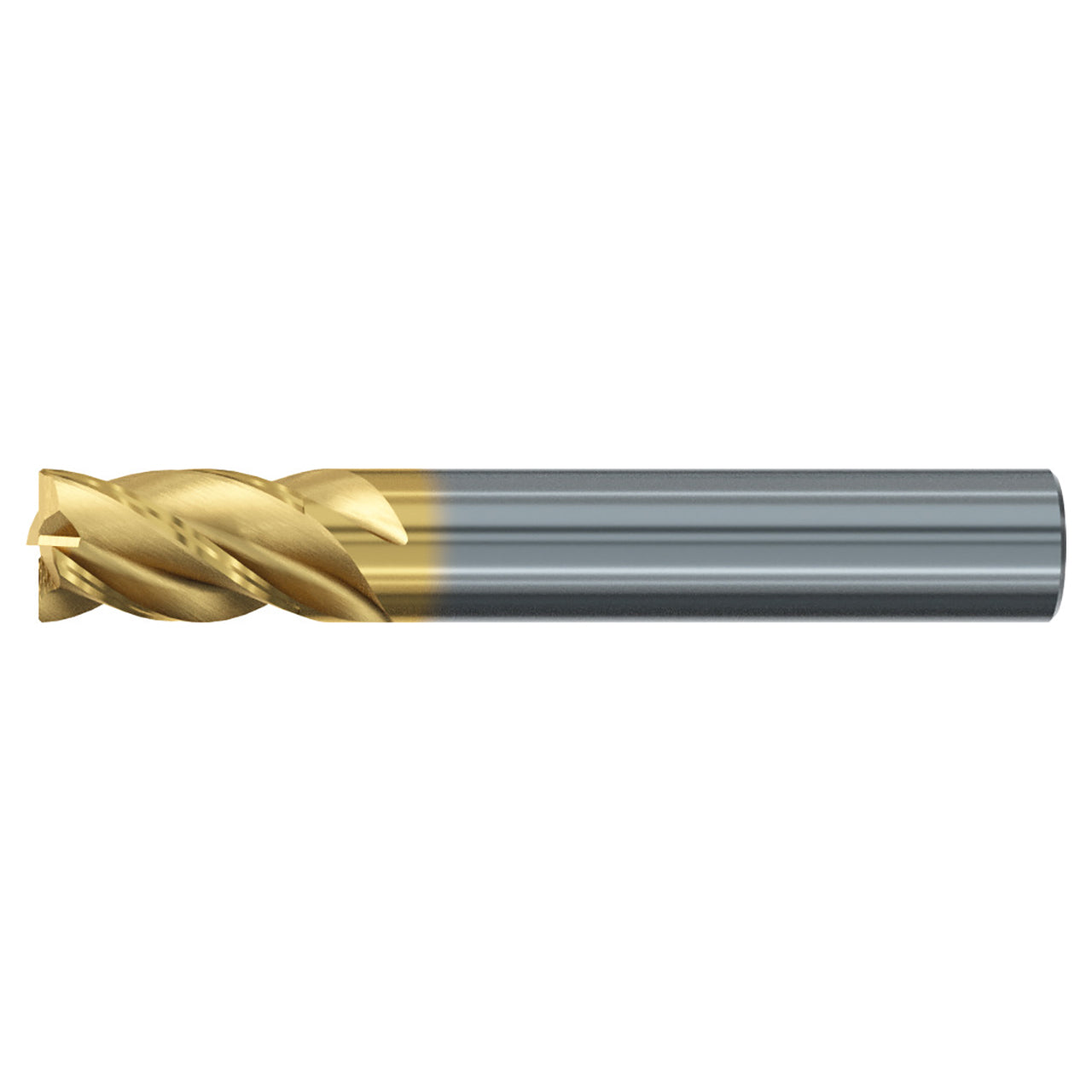

- TiNox-Cut - Base, carbide end mill for roughing and finishing of stainless and acid-resistant steels
- Variable spacing reduces vibrations and allows low-vibration machining
- Wear resistant sub-micro grain carbide substrate
- TIN-TIALN multi-layer coating for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 2975T.03125 |
| Cutting Diameter (Inch) | 5/16" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Overall Length (Inch) | 2" |
| Flute-Length (Inch) | 1-2" |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Stub Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-37 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIN/TIALN |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Rough / Finish |
| Product Type | Corner Radius End Mill |
