Features:

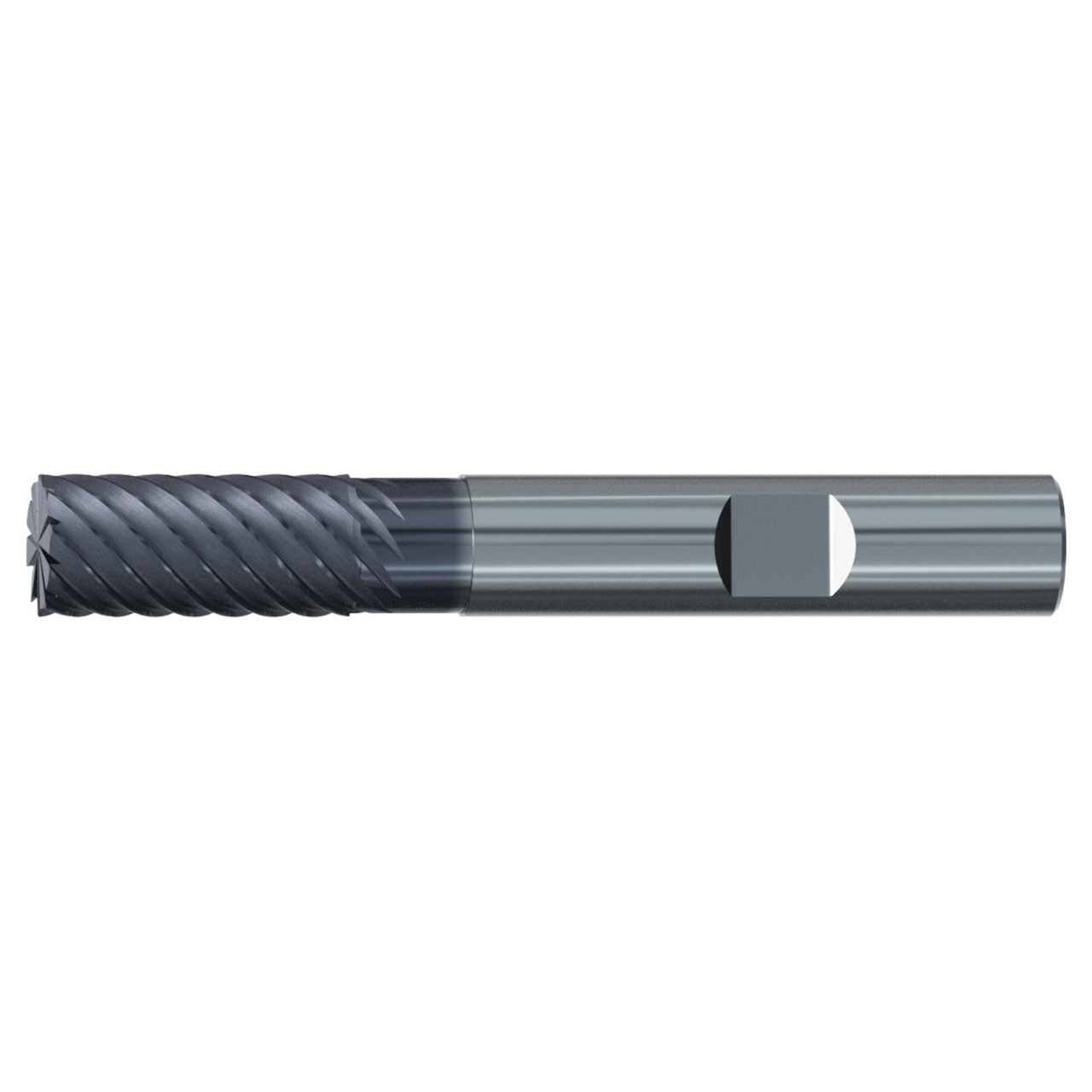

- Jet-Cut carbide end mill for finishing in almost all materials
- The number of flutes corresponds to the cutting diameter, resulting in very high metal removal rates with best possible surface quality
- Variable spacing reduces vibrations and allows low-vibration machining
- TIALN coated for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 2886A.016 |
| Cutting Diameter (Decimal Inch) | 0.630" |
| Cutting Diameter (mm) | 16.00mm |
| Overall Length (mm) | 92.00mm |
| Flute Length (mm) | 32.00mm |
| Length Group | Standard Length |
| Number of Flutes | 16 |
| Flute Helix Angle (Degree) | 40 Degree |
| Shank Tolerance | h5 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square End Mill |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Product Type | Square End Mill |
