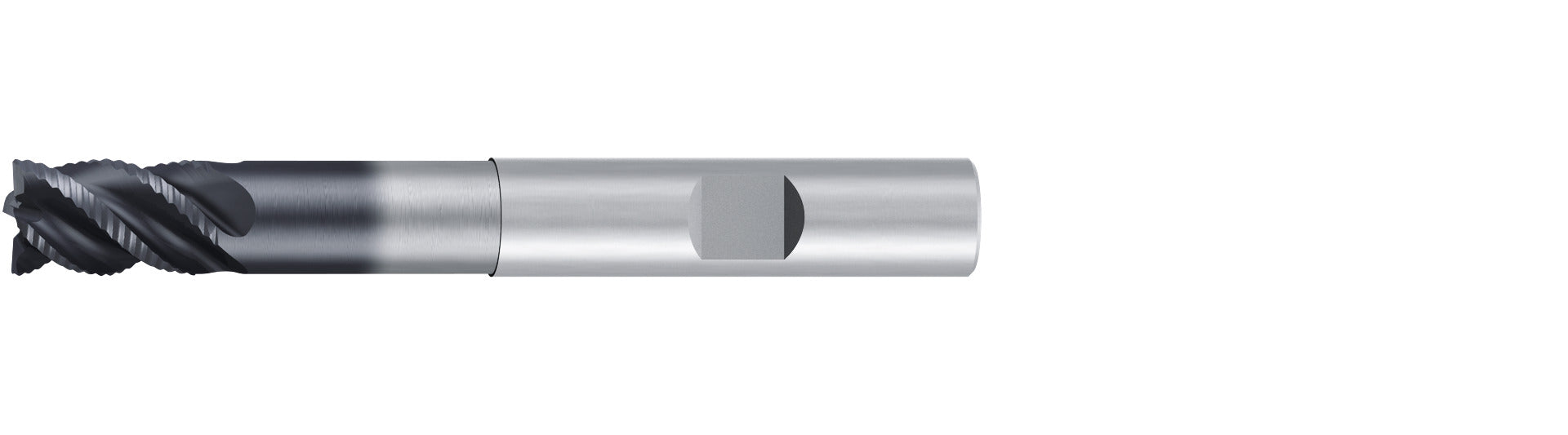

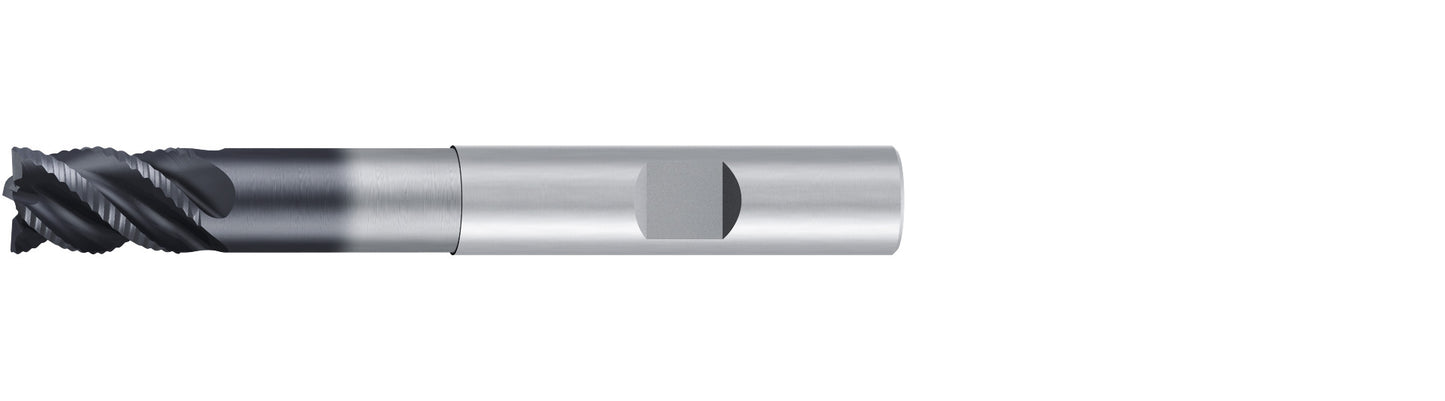

Features:
- Coolant fed, fine tooth roughing profile for high volume machining
- Provides maximum chip removal rates in a wide range of materials
Product Specifications
| Chamfer Form | |
| Size | 16 mm |
| Applicable Material | Steel, Cast Iron, Copper Alloys, Hardened Materials |
| Type | Square End |
| Length Group | Extra Length |
| Coolant Fed | NA |
| Coating/Finish | ALCR |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 45 Degree |
| Shank Diameter (mm) | 16 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 108 mm |
| Flute Length (mm) | 24 mm |
| Flute Direction | Right Hand |
