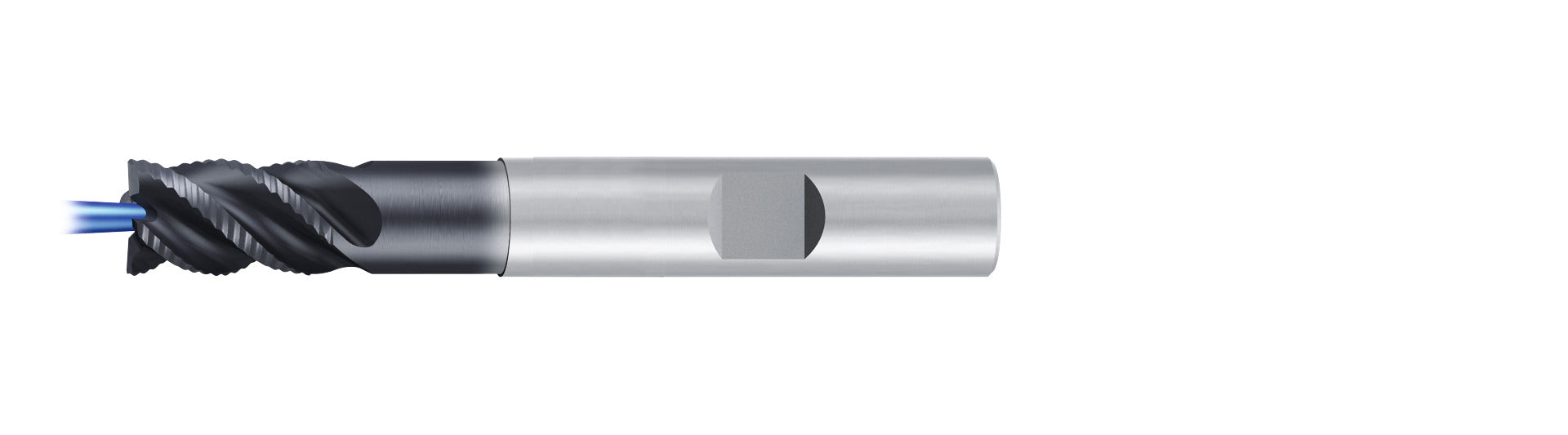

Features:
- Universal design for high performance milling. Coolant fed for chip evacuation
- Increased production rates with higher feed rates. Maximum chip evacuation properties withy higher tool life
Product Specifications
| Chamfer Form | |
| Size | 5 mm |
| Applicable Material | Steel, Cast Iron, Copper Alloys, Hardened Materials |
| Application | Rougher |
| Type | Square End |
| Length Group | Regular |
| Coolant Fed | Axial |
| Coating/Finish | ALCR |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 45 Degree |
| Shank Diameter (mm) | 6 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 57 mm |
| Flute Length (mm) | 9 mm |
| Flute Direction | Right Hand |
