Features:

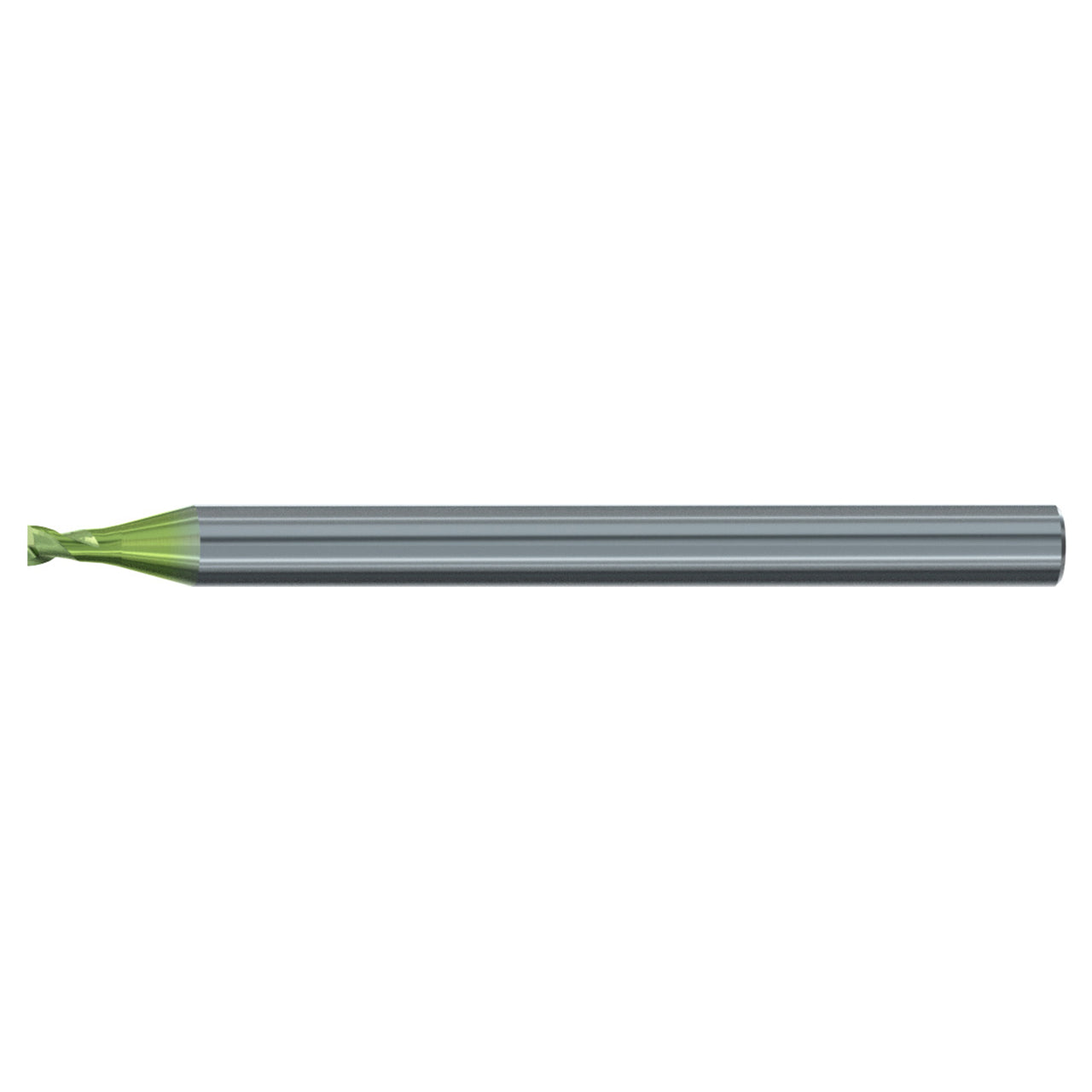

- Carbide micro end mill in short design for machining the smallest engravings and components in almost all materials
- Special neck geometry for maximum process reliability even when used on deep contours
- ALCR coating with particularly smooth surface for best possible wear protection and long tool life
- Tight tolerance cutting geometry
Product Specifications
| Manufacturer Part Number | 2760L.0006 |
| Cutting Diameter (Decimal Inch) | 0.024" |
| Cutting Diameter (mm) | 0.60mm |
| Neck Length (mm) | 1.32mm |
| Overall Length (mm) | 38.00mm |
| Flute Length (mm) | 0.36mm |
| Shank Tolerance | h5 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 2.2X Reach |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
