Features:

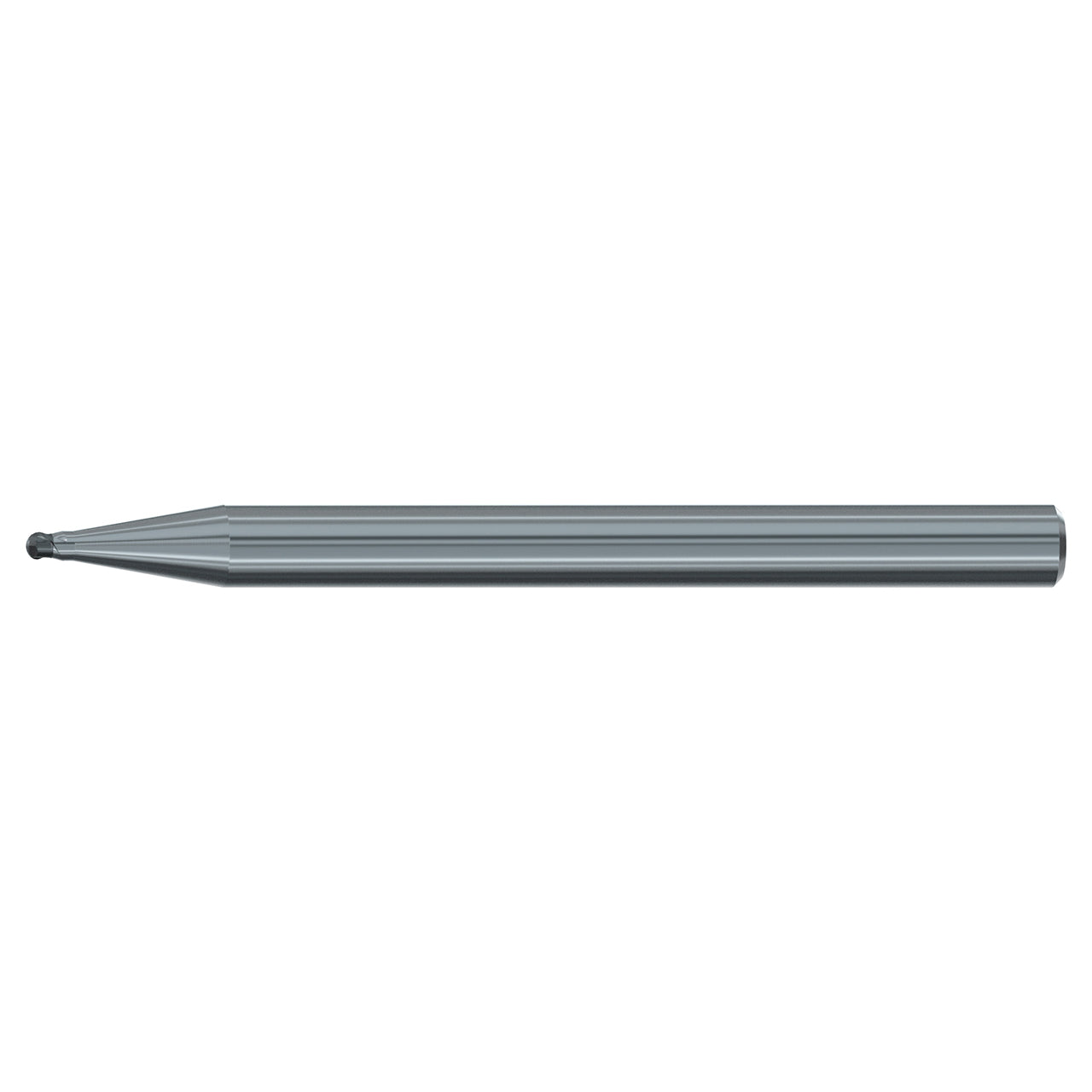

- CBN micro ball nose end mill for high speed machining finishing of 2D and 3D contours in materials up to 66 HRC
- The CBN material offers higher wear protection and tool life than a carbide tool
- Very precise radius tolerance of ± 3µm for precise machining results and highest repetitive accuracy
Product Specifications
| Manufacturer Part Number | 2618.03 |
| Cutting Diameter (Decimal Inch) | 0.012" |
| Cutting Diameter (mm) | 0.30mm |
| Corner Radius (mm) | 0.15mm |
| Overall Length (mm) | 50.00mm |
| Flute Length (mm) | 0.30mm |
| Shank Tolerance | h4 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Connection Diameter Machine Side | BT40 |
| Flute Direction | Right Hand |
| Group Length | 1.5xD |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | CBN |
| Coating | Bright |
| Tool Type | Ball Nose |
| End Mill - End Style | Ballnose End Mills |
| End Shape | Ball |
| Application | Finishing |
| Product Type | Ball End Mill |
