Features:

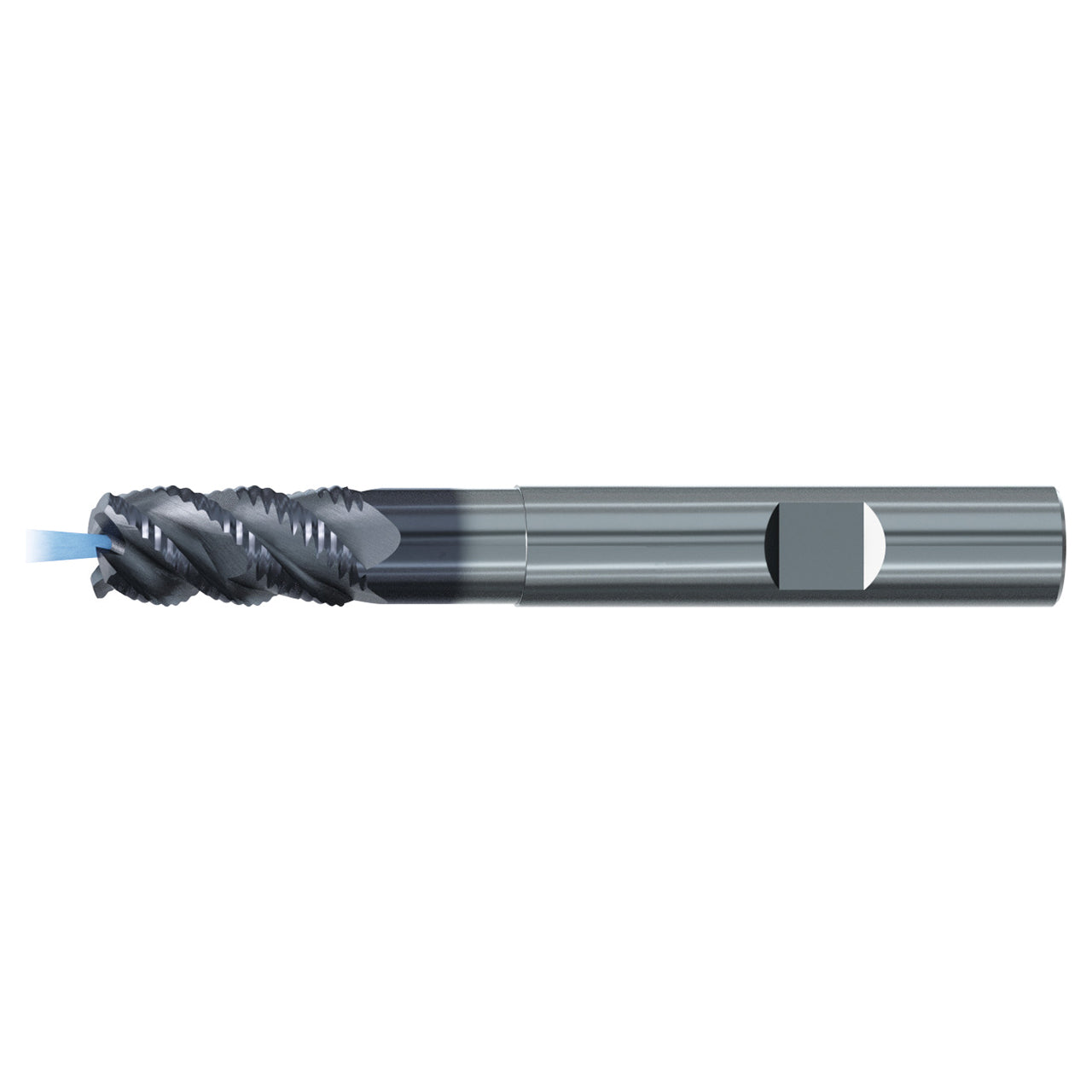

- Multi-Cut Duplex carbide end mill in long design for high-performance roughing in almost all materials
- Duplex geometry combines HPC and HFC geometry, enabling 2D and 3D machining with a single tool
- Very low cutting forces and vibrations due to variable spacing and NR cutting profile
- Excellent for roughing under unstable conditions
Product Specifications
| Manufacturer Part Number | 2617AZ.008 |
| Cutting Diameter (Decimal Inch) | 0.315" |
| Cutting Diameter (mm) | 8.00mm |
| Corner Radius (mm) | 1.00mm |
| Overall Length (mm) | 68.00mm |
| Flute Length (mm) | 19.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Regular |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Corner Radius |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | TORUS |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
