Features:

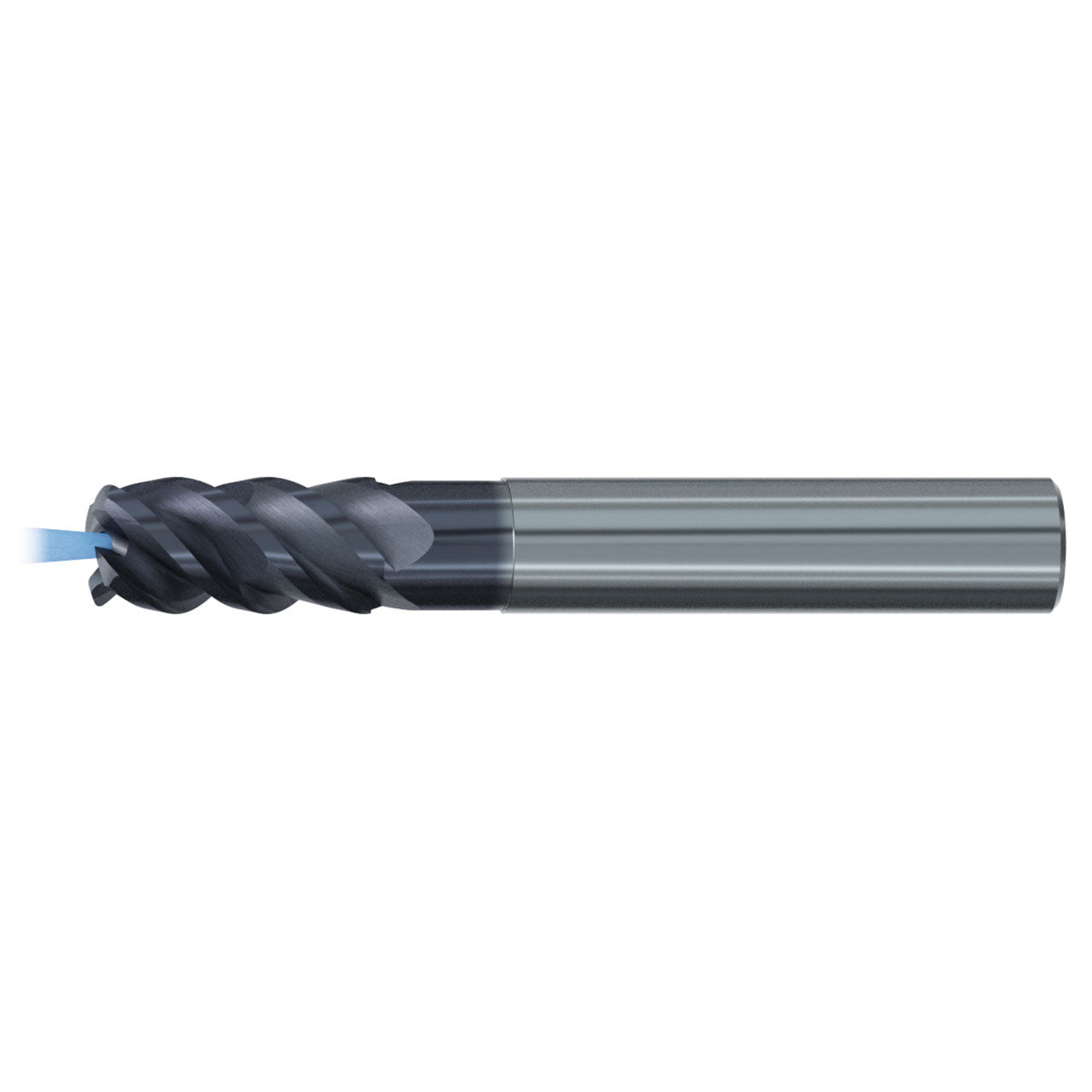

- Jet-Cut carbide end mill in long design for roughing under unstable conditions in almost all materials
- Duplex geometry combines HPC and HFC geometry, enabling 2D and 3D machining with a single tool
- Axial coolant hole for enhanced chip evacuation
- TIALN coated for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 2610AZ.006 |
| Cutting Diameter (Decimal Inch) | 0.236" |
| Cutting Diameter (mm) | 6.00mm |
| Corner Radius (mm) | 0.80mm |
| Overall Length (mm) | 57.00mm |
| Flute Length (mm) | 13.00mm |
| Length Group | Regular |
| Number of Flutes | 4 |
| Flute Helix Angle (Degree) | 50 Degree |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Torus |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Product Type | Corner Radius End Mill |
