Features:

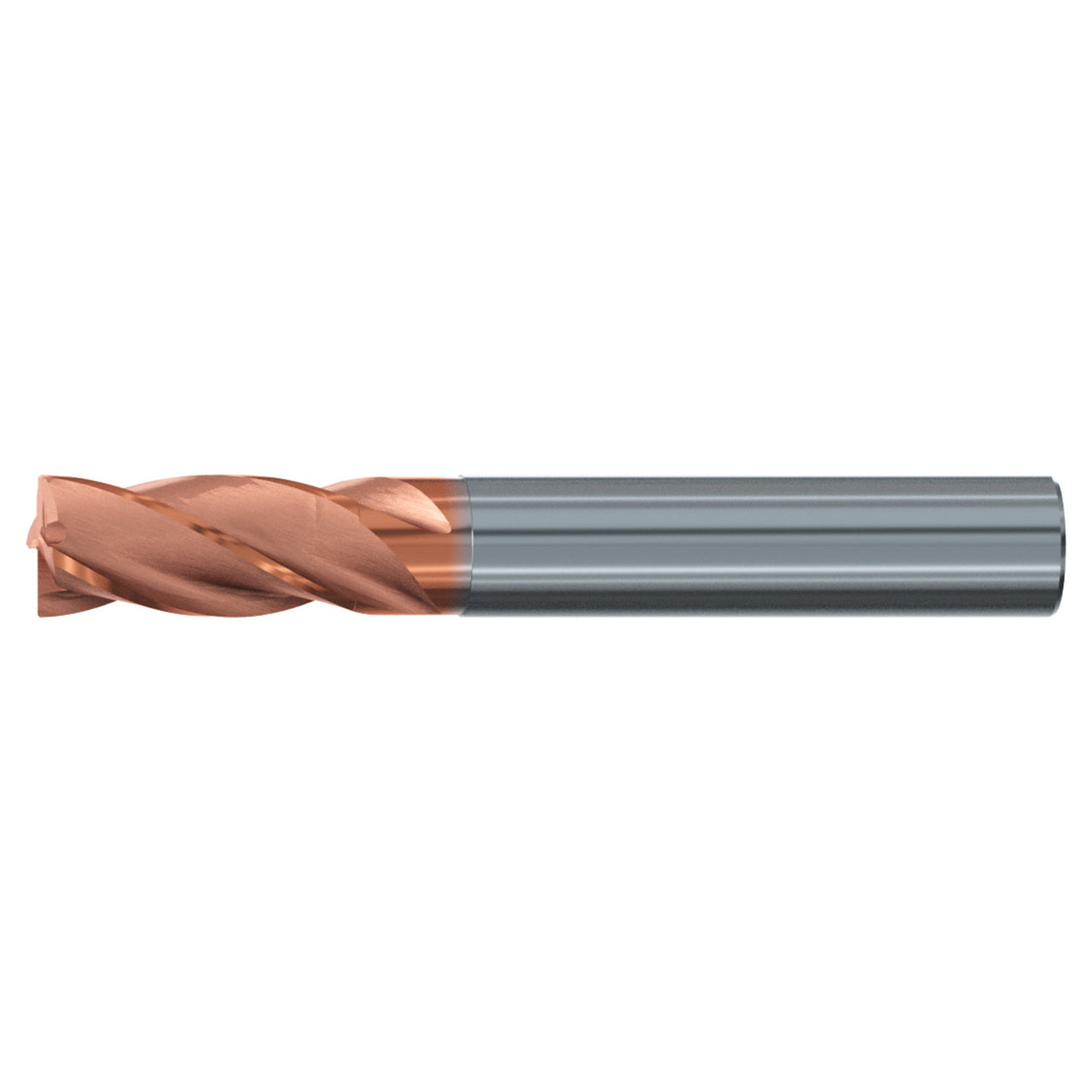

- TOP-Cut carbide end mill in long design for roughing and finishing in almost all materials
- Unique geometry enables low-vibration machining and universal use in almost all materials and milling processes
- TiALN coated for additional heat and wear resistance
Product Specifications
| Manufacturer Part Number | 1998A.010005 |
| Cutting Diameter (Decimal Inch) | 0.394" |
| Cutting Diameter (mm) | 10.00mm |
| Overall Length (mm) | 72.00mm |
| Flute Length (mm) | 22.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Standard Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
