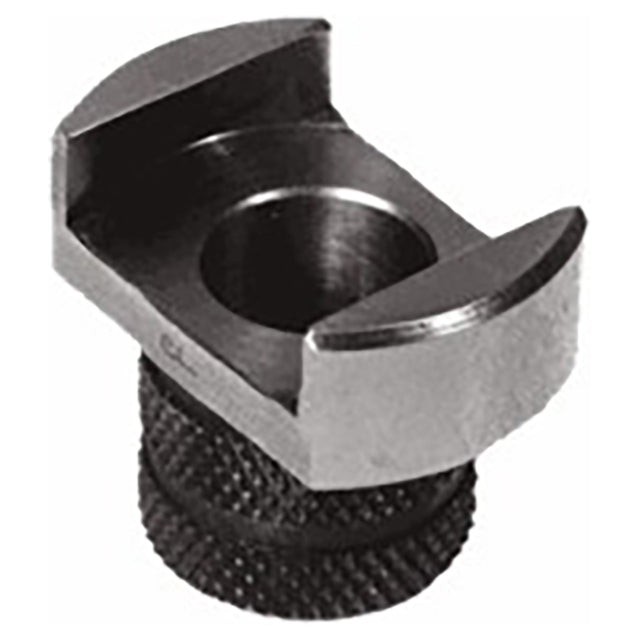

Taper-Lok Liners-Knurled
Precision knurled liner bushing for mounting air-feed drills in fiberglass or plastic tooling. One-piece design has two angled locking surfaces to lock the drill motor in place, for superior strength. Optional heavy-duty type has precisely machined helical locking surfaces that mate exactly with the air-feed collar, for added impact resistance. Milled flats allow close hole spacing.
Material
Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | D (Inch) | F Diameter (Inch) | G (Inch) | H (Inch) | L (Inch) | Matching Adaptor Tip |
| 0.3750 .3755" | 3/4" | 7/8" | 1-3/16" | 0.625" | 7/8" | 1-1/8" | A-21108 |
