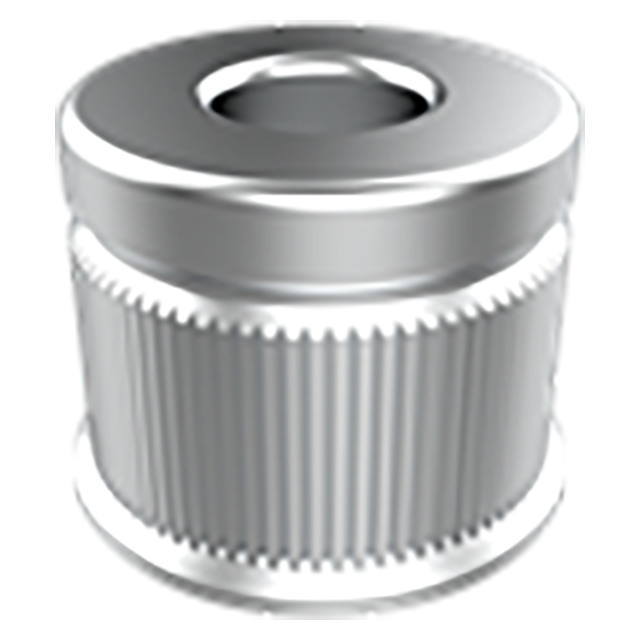

Template Bushings
An economical bushing designed for thin template jig plates from 1/16 to 3/8" thick. Bushings are held in place by a Retainer Ring. The OD serrations prevent the bushing from spinning. Bushings can be removed and reused by breaking the aluminum Retainer Ring.
Application Information
ID Tolerance
Standard ID Tolerance:From #55 to 1/2" +0.0001/+0.0011
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Bushing | 1144 Stressproof steel | heat treated to achieve Rc 62-64 ID hardness | - | Yes | Yes |
| Retainer Ring | Aluminum | - | - | Yes | Yes |
Parts Specification
| Standard Drill Sizes (mm) | OD B (Inch) | C (Inch) | Grip D (Inch) | Template Thickness (Inch) |
| 1/16-3/16, #55-#9, 1.30-5.00mm | 3/8" | 3/8" | 1/4" | 1/8" |
