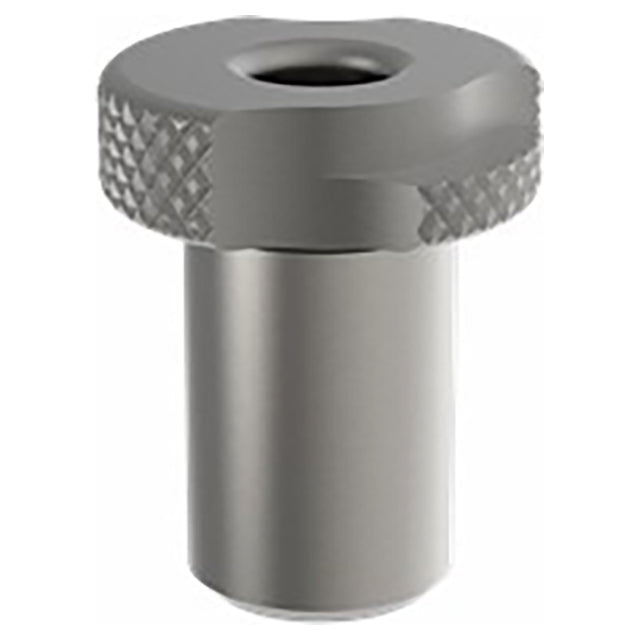

Carr Lane SFM-10-25-4.50 | Slip/Fixed Renewable Bushing

Slip/Fixed Renewable Bushings-Metric

Metric version of the popular SF bushing. These replaceable SFM bushings are generally used with a liner bushing and lockscrew. Use when you expect to replace bushings during the tooling's lifetime, or to switch bushings to perform multi-step operations with the same tooling. SFM bushings combine the benefits of older S-type slip-renewable and F-type fixed renewable bushings: one side has a lockscrew recess for fixed mounting; the other has a locking recess that allows the bushing to slip down, then rotate to lock in place.

Application Information

These replaceable bushings are generally used with a liner bushing and lockscrew.

ID Tolerance

Standard ID Tolerance (G6):

From .35 to 3mm +0.002/+0.008mm

Over 3 to 6mm +0.004/+0.012mm

Over 6 to 10mm +0.005/+0.014mm

Over 10 to 18mm +0.006/+0.017mm

Over 18 to 30mm +0.007/+0.020mm

Over 30 to 50mm +0.009/+0.025mm

Over 50 to 80mm +0.010/+0.029mm

From 1 to 3mm +0.006/+0.012mm

Over 3 to 6mm +0.010/+0.018mm

Over 6 to 10mm +0.013/+0.022mm

Over 10 to 18mm +0.016/+0.027mm

Over 18 to 30mm +0.020/+0.033mm

OD tolerance

Standard OD Tolerance (h5):

8 to 10mm 0/-0.006

12 to 18mm 0/-0.008

22 to 30mm 0/-0.009

35 to 48mm 0/-0.011

55 to 78mm 0/-0.013

85mm 0/-0.015

Counterbore on Small Drill Sizes

Metric bushings with small drill sizes through .80mm are counterbored 1.00mm diameter with 3mm drill-bearing length, according to ANSI standards, to eliminate binding and heat buildup.

Material

1144 Stressproof steel, heat treated to achieve Rc 62-64 ID hardness. DFARS and RoHS compliant.
