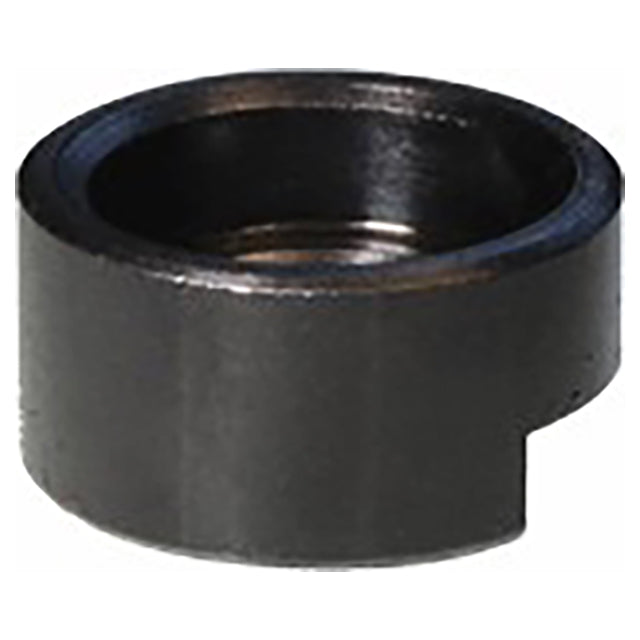

Round Clamps-Metric
Heavy-duty alternative to Lockscrews when clamping the "fixed" side of a metric renewable bushing. Round Clamps have a slightly shorter recess height than a Lockscrew, to clamp bushings without clearance.
Installation
Fasten with a Socket-Head Cap Screw.
Material
| Material | Heat Treat | Finish | DFARS | RoHS | ||
| Mild Steel | - | Black Oxide | ✔ | ✔ |
| A Diameter (mm) | B (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H Socket-head Cap Screw |
| 13mm | 8mm | 4mm | 9.5mm | 2.8mm | 3mm | M5 |
