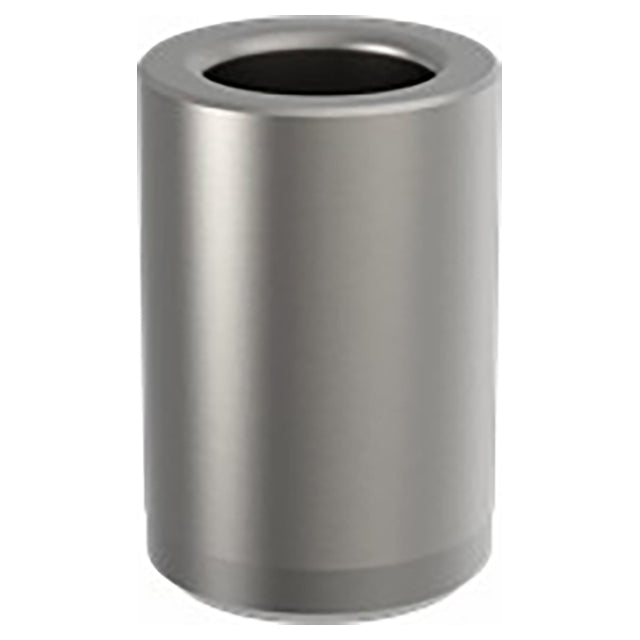

Quick-Ship Press-Fit Bushings-Metric (PM)
Metric version of the popular P bushing. PM bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. PM bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.Application Information
PM bushings are permanently pressed into the jig plate, usually flush with the top surface.
ID Tolerance
Standard ID Tolerance (G6):From .35 to 3mm +0.002/+0.008mm
OD Tolerance
Standard OD Tolerance (s6):4 to 6mm +0.027/+0.019
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Stressproof Steel | Heat treated to achieve Rc 62-64 ID hardness | - | - | Yes |
Parts Specification
| ID (mm) | OD (mm) | Length (mm) |
| 3.00mm | 6mm | 8mm |
