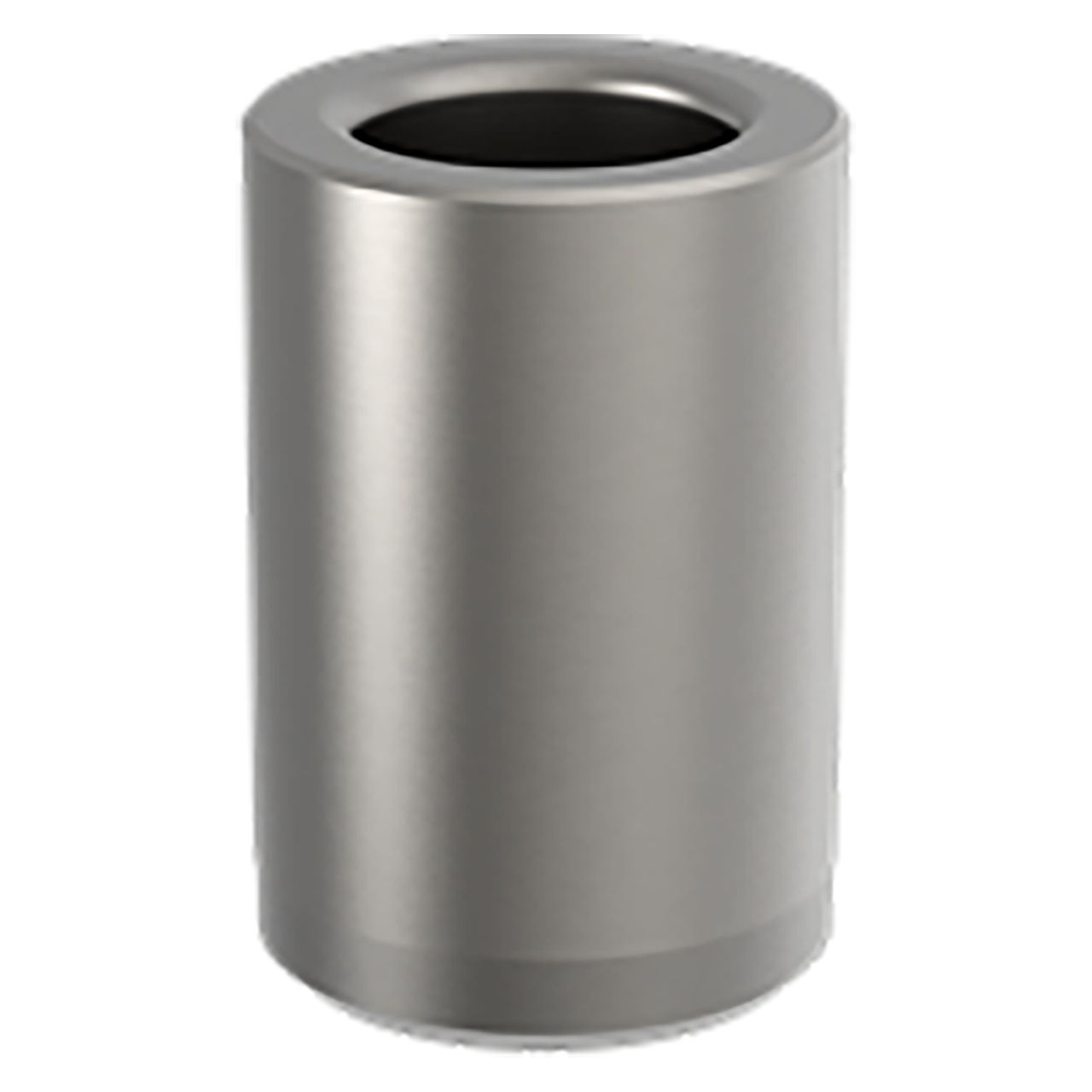

Quick-Ship Press-Fit Bushings (P)
P bushings are the most-popular and least-expensive type of drill bushing. P bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.
Application Information
P bushings are permanently pressed into the jig plate, usually flush with the top surface.
ID Tolerance
Standard ID Tolerance:From #80 to 1/4" +0.0001/+0.0004
Over 1/4 to 3/4" +0.0001/+0.0005
Over 3/4 to 1-1/2" +0.0002/+0.0006
OD Tolerance
Standard OD Tolerance:3/4 to 1" +0.0018/+0.0015
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 or 52100 steel | Heat Treated to achieve Rc 62-64 ID Hardness | - | - | Yes |
Parts Specification
| ID (Inch) | OD (Inch) | Length (Inch) |
| 7/16 (0.4375)" | 3/4" | 1-3/8" |
