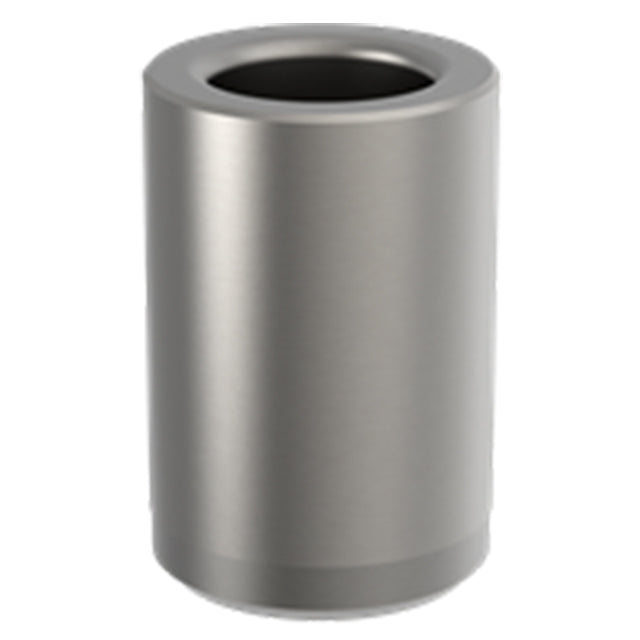

Quick-Ship Press-Fit Bushings
P bushings are the most-popular and least-expensive type of drill bushing. P bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.
Application Information
P bushings are permanently pressed into the jig plate, usually flush with the top surface.
ID Tolerance
Standard ID Tolerance:
From #80 to 1/4" +.0001/+.0004
Over 1/4 to 3/4" +.0001/+.0005
Over 3/4 to 1-1/2" +.0002/+.0006
OD Tolerance
Standard OD Tolerance:
5/32 to 13/64" +.0016/+.0012
1/4 to 13/32" +.0016/+.0013
7/16 to 5/8" +.0017/+.0014
3/4 to 1" +.0018/+.0015
1-1/8 to 1-1/4" +.0020/+.0017
1-3/8 to 1-1/2" +.0022/+.0018
Material
Parts Specification
| ID | OD | Length |
| 7/16 (.4375) | 3/4" | 1" |
