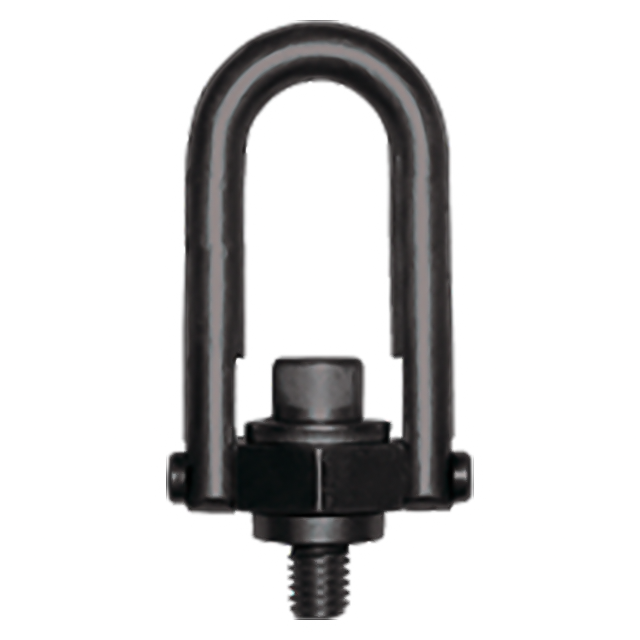

Swivel Hoist Rings
Long-ring version of the original safety-engineered hoist ring. The longer ring provides extra reach and allows using larger lifting hooks. Swivel Hoist Rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction.
Application Information
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Installation
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.
Material
| Item | Material | Heat Treat | FINISH |
| Swivel Hoist Rings (Long Ring) | Alloy Steal | Heat Treated | Black Oxide(Electroless Nickel Finish or Cadmium Plating available as a special) |
Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | N Diameter (mm) | P (mm) | Installation Torque (nm) |
| 4200 | M24 | 3mm | 34mm | 43mm | 206mm | 25.5mm | 36mm | 121mm | 76mm | 131mm | 67mm | 187mm | 60mm | 6mm | 310 |
