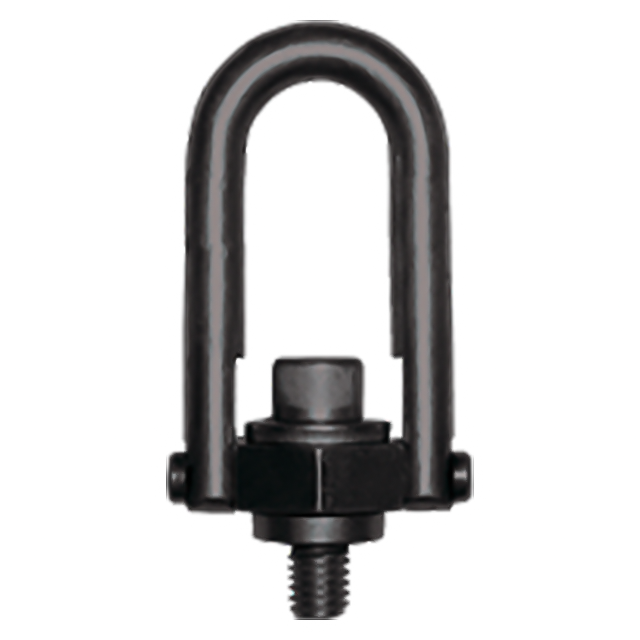

Swivel Hoist Rings
Long-ring version of the original safety-engineered hoist ring. The longer ring provides extra reach and allows using larger lifting hooks. Swivel Hoist Rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction.
Application Information
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Material
| Item | Material | Heat Treat | FINISH |
| Swivel Hoist Rings (Long Ring) | Alloy Steal | Heat Treated | Black Oxide(Electroless Nickel Finish or Cadmium Plating available as a special) |
Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | N Diameter (mm) | P (mm) | Installation Torque (nm) |
| 1900 | M16 | 2mm | 24mm | 31mm | 171mm | 19mm | 22mm | 83mm | 51mm | 89mm | 47mm | 157mm | 38mm | 4mm | 80 |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
