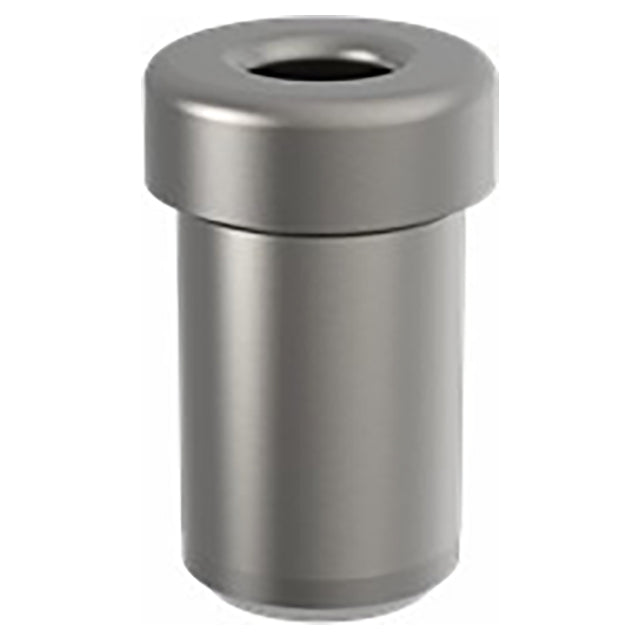

Quick-Ship Head Press-Fit Bushings-Metric (HM)
Metric version of the popular H bushing. HM bushings are permanently pressed into the jig plate. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. The head can be left exposed, or recessed by counterboring the installation hole.Application Information
HM bushings are permanently pressed into the jig plate. The head can be left exposed, or recessed by counterboring the installation hole.
ID Tolerance
Standard ID Tolerance (G6):Over 18 to 30mm +0.007/+0.020mm
OD Tolerance
Standard OD Tolerance (s6):22 to 30mm +0.048/+0.035
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 or 52100 steel | Heat Treated to achieve Rc 62-64 ID Hardness | - | - | Yes |
Parts Specification
| ID (mm) | OD (mm) | Length (mm) | F Diameter (mm) | G (mm) |
| 20.00mm | 30mm | 20mm | 34mm | 5mm |
