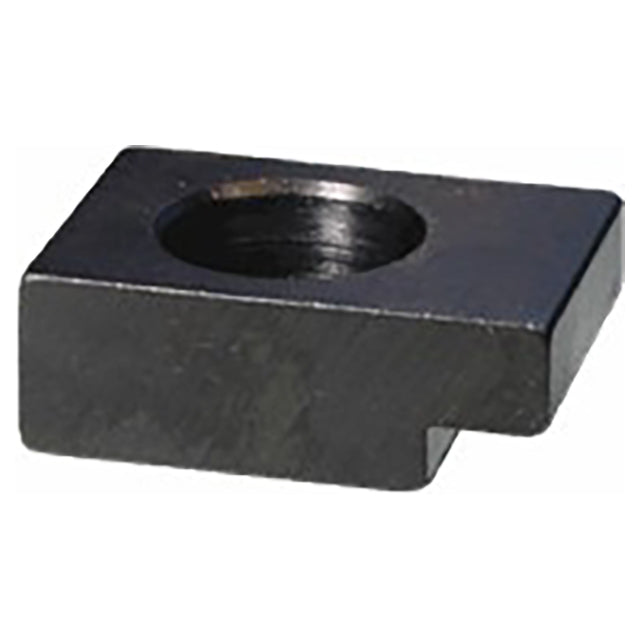

Flat Clamps
Use to lock FM-type fixed renewable bushings, which have a milled locking flat. Flat Clamps have one or two mounting holes, depending on the size.
Installation
Fasten with one or two Socket-Head Cap Screws (depending on the clamp size).
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | - | Black Oxide | ✔ | ✔ |
Parts Specification
| Number Of Mounting Holes | A (Inch) | B (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H Socket-head Cap Screw (Inch) |
| 1 | 5/8" | 1" | 1" | 1/2" | 1/4" | 5/16" | 5/16-18" |
