EZ-Cast Liner Bushings

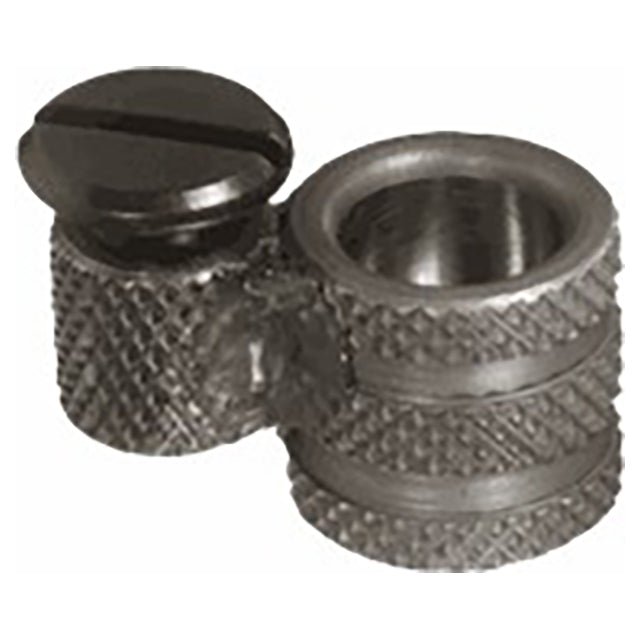

Knurled liner with an integral Lockscrew, for cast-in-place or potted installation. EZ-Cast Liners are permanent bushings used to hold renewable drill bushings on either the "slip" side or the "fixed" side. Diamond-knurled OD provides excellent holding strength against both rotational and axial forces. Since the bushing's OD is not ground, the ID must be accurately located during casting or potting to ensure accuracy in the finished tool.
Application Information
Knurled liner with an integral Lockscrew, for cast-in-place or potted installation.
ID Tolerance
Standard Liner ID Tolerance:
- 5/16" +0.0001/+0.0004
- 1/2" +0.0002/+0.0005
- 3/4" +0.0003/+0.0006
- 1" +0.0004/+0.0007
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Stressproof Steel | Heat treated to achieve Rc 62-64 ID hardness | - | ✔ | ✔ |
| ID (Inch) | OD (Inch) | Length (Inch) | A (Inch) |
| 1" | 1-3/8" | 1-3/8" | 59/64" |
