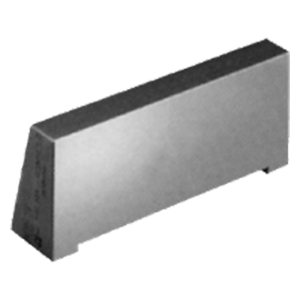

Carr Lane CLRH-3771-72-VSA | 100.00mm Width x 34.00mm Height Soft Jaw Insert

Product Information

Soft Blank Jaw Inserts are used together with base jaws as part of our Quick Insert System (QIS). Similar to Plain Jaw Inserts, except furnished as soft, oversize blanks for machining a custom vise-jaw fixture. Use Soft Blank Jaw Inserts either in pairs, or with another QIS jaw insert. QIS is our patented system of downthrust vise jaws, consisting of several different quick-change jaw inserts that mount on a single base jaw. Jaw inserts are held in place by a guide pin and two permanent magnets (Soft Blank Jaw Inserts have a bottom groove instead of a guide pin for precise sideways location on the vise guideways). Jaw inserts can be changed in a few seconds. The base jaw and jaw inserts have a matching angle between them to provide downthrust action. This downthrust effect ensures that the workpiece is held firmly down against the vise to a precise zero point, providing extremely accurate height location. Available in three jaw widths, to fit the following vise sizes: 100mm 125mm 160mm.
