Product Information

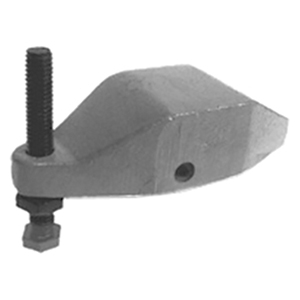

7250 psi max Complete assembly with a rugged nodular iron clamping arm that pivots on a forged steel carrier. This swing-clamp arm requires a rear support and allows operating pressures up to 7250 psi. Clamping end is held up by spring force. Adjustable contact bolt furnished. Longest reach of any standard arm. Available in four sizes, to fit five different Swing Clamp series, with a choice of USA or metric contact-bolt threads..
Material Specifications
| Item | Material | Head Tread | Stud | DFARS | RoHS |
| Arm | Nodular Iron | - | - | ? | ? |
| Carrier | Forged 1045 Steel | - | - | ? | ? |
| Pivot pin, retaining ring, and springs | Steel | - | - | ? | ? |
| Contact Bolt | Steel, Grade 8 | - | Black Oxide | ? | ? |
Product Specifications
| Manufacturer Part Number | CLR-602-SCA |
| Clamp Size | 6 Series |
| Product Type | Pivoting Clamping Arm |
