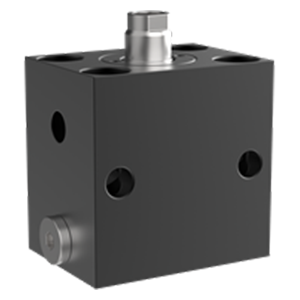

Carr Lane CLR-1575-705-BC | 5/8" - 11 x 25 Thread Size x 85.00mm Width x 63.00mm Depth x 114.00mm Height Block Pull Cylinder

Carr Lane CLR-1575-705-BC | 5/8" - 11 x 25 Thread Size x 85.00mm Width x 63.00mm Depth x 114.00mm Height Block Pull Cylinder

SKU: 50024702

$395.90 USD
$395.90 USD $395.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 2599 Grams

View full details

Product Information

7250 psi max Single Acting Pull-clamp version of our popular Block Cylinders. Plunger is extended with pressure off, then retracts when pressure is applied. Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for pressing and assembly operations, with very high forces available. Available in five inch sizes and eight metric sizes. Push force at 7250 psi: 1350 Lbs 3210 Lbs 5440 Lbs 8520 Lbs 12900 Lbs 20700 Lbs 34100 Lbs 52800 Lbs .

Clamping Action

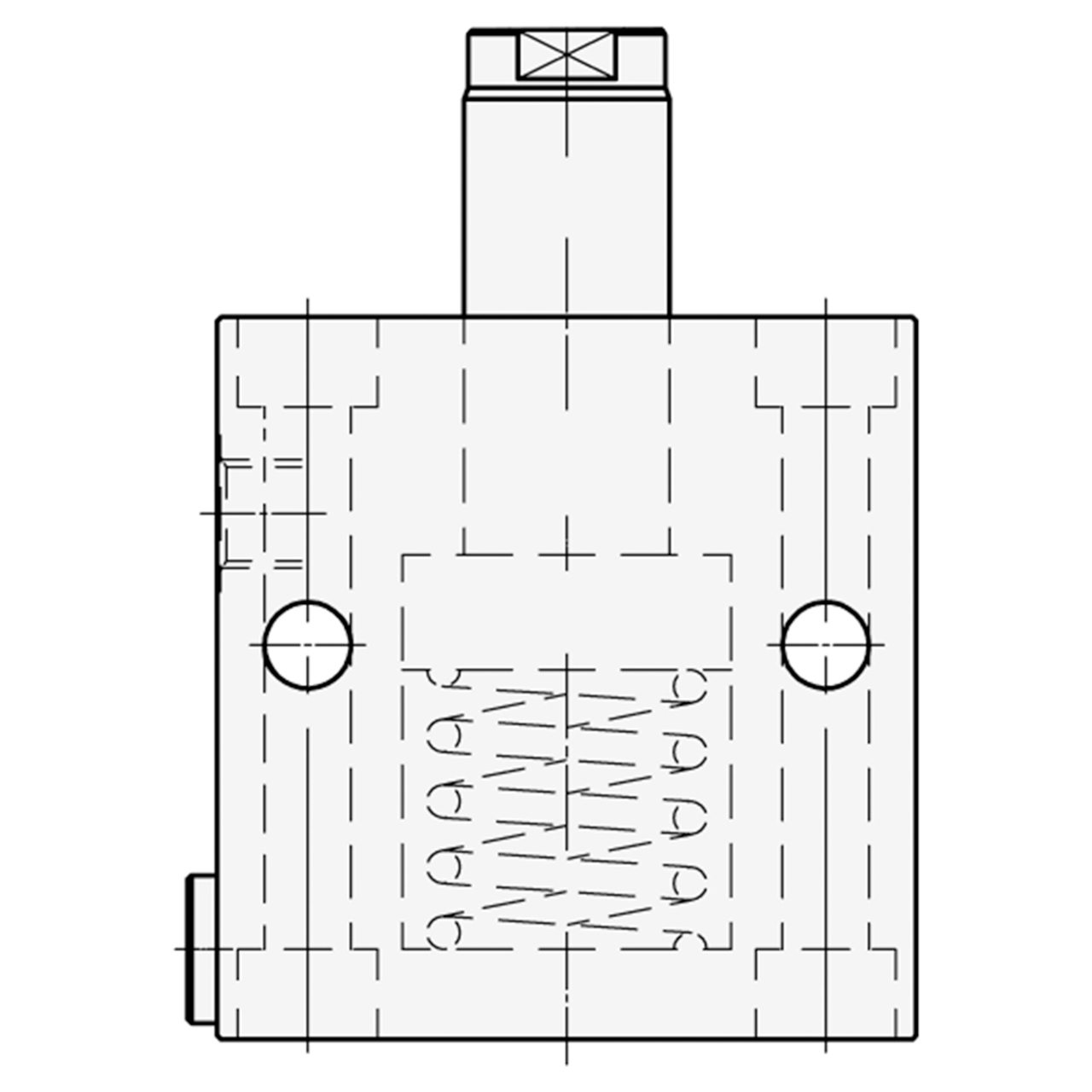

Applying fluid pressure retracts the plunger. Spring return to extended position.

Optional Viton Seals

For high-temperature applications (212 Degree to 300 Degree F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life.


Material Specifications
Item Material Head Tread Stud
Plunger Steel Case Hardened -
Body Steel - Black Oxide

Product Specifications
Manufacturer Part Number CLR-1575-705-BC
Thread Size 5/8" - 11 x 25
Width (mm) 85.00mm
Depth (mm) 63.00mm
Height (mm) 114.00mm
Product Type Block Pull Cylinder
