Product Information

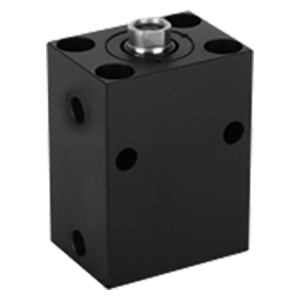

7250 psi max Double Acting Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for punching, pressing, and assembly operations, with very high forces available. These double-acting cylinders can also be used for pulling, by reversing the A and B ports. Available in six inch sizes and eight metric sizes, with a choice of stroke length. Push force at 7250 psi: 2250 Lbs 5500 Lbs 9000 Lbs 14100 Lbs 22100 Lbs 35100 Lbs 56600 Lbs 88100 Lbs .
Clamping Action

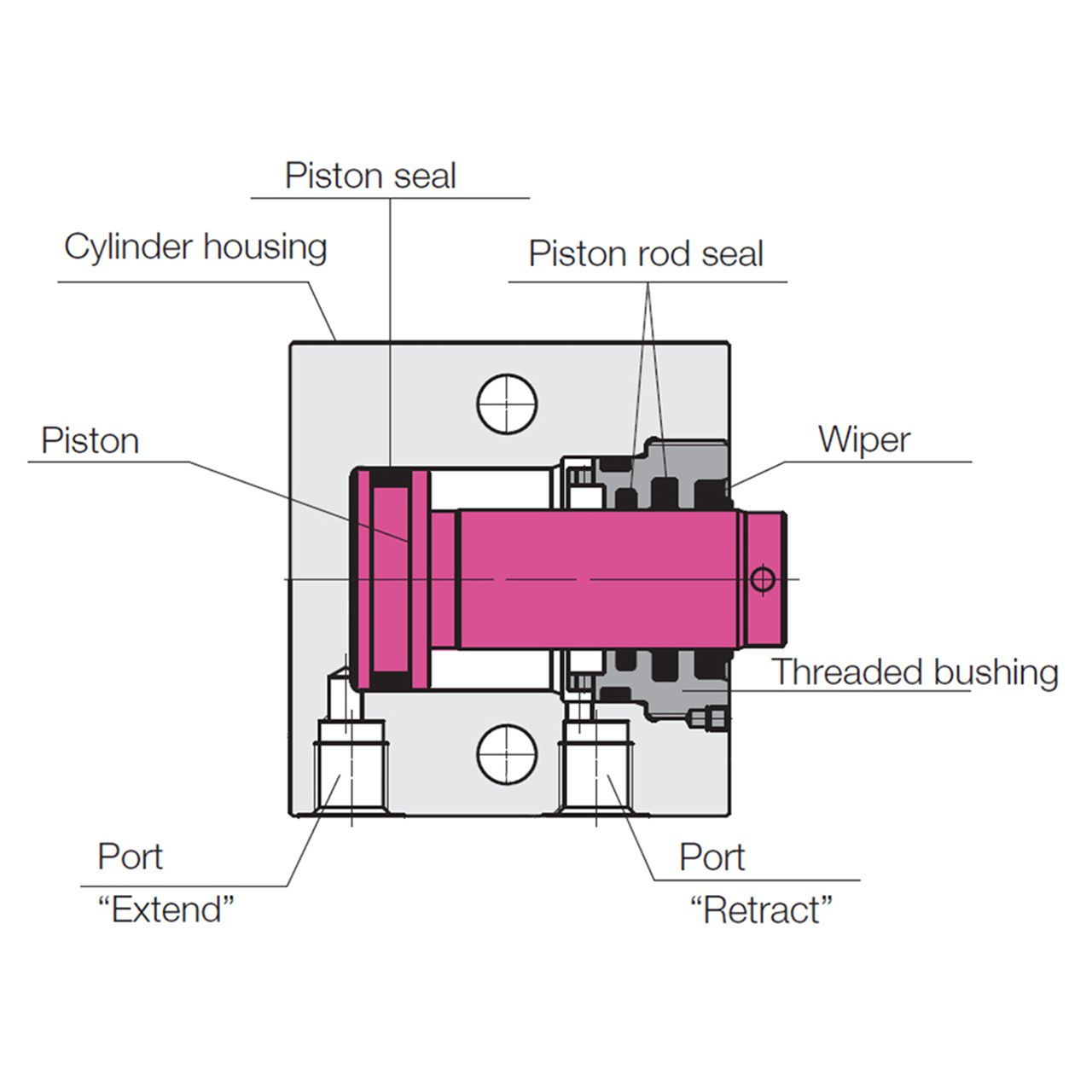

Applying fluid pressure to the A port advances the plunger. Applying fluid pressure to the B port retracts the plunger (double acting).
Optional Viton Seals
For high-temperature applications (212 Degree to 300 Degree F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life.
| Item | Material | Head Tread | Stud |
| Plunger | Steel | Case Hardened | - |
| Body | Steel | - | Black Oxide |
| Manufacturer Part Number | CLR-1541-705 |
| Thread Size | 1/4"-20 x 12 |
| Width (mm) | 60.00mm |
| Depth (mm) | 35.00mm |
| Product Type | Short Stroke Block Cylinder |
