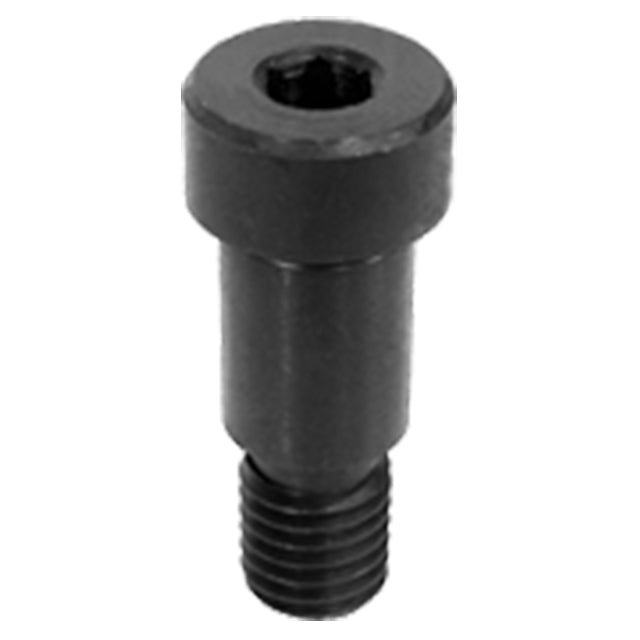

Shoulder Screws
Precision close-tolerance Shoulder Screw. The shoulder diameter is ground to a closer tolerance than ordinary stripper bolts, for better bearing action. Shoulder length is held to a plus tolerance to allow a nominal-size plate to swing freely underneath the head.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Alloy Steel | Heat Treated Rc 32-43 | Black Oxide | Metric | Yes |
Parts Specification
| Shoulder Diameter (mm) | A Thread | Thread Pitch (mm) | B (mm) | D (mm) | E (mm) | F Diameter (mm) | G (mm) |
| 8mm | M6 | 1mm | 16mm | 5.5mm | 11mm | 13mm | 4mm |
