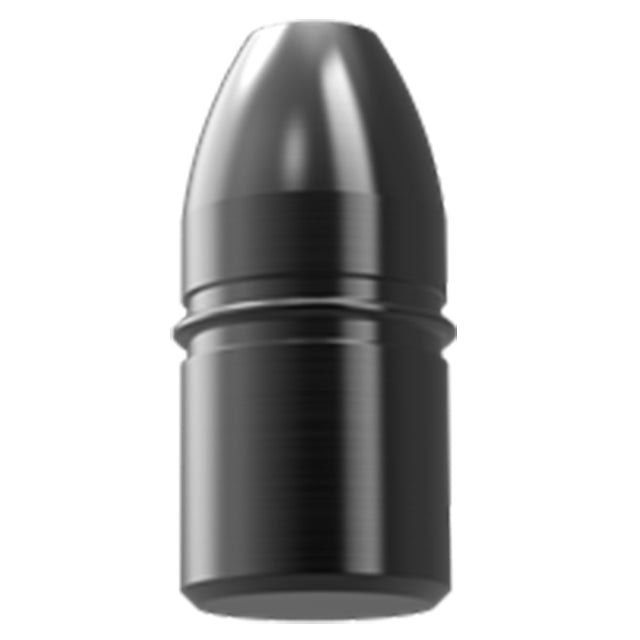

Bullet-Nose Dowels
Precision locating pin often used with a mating bushing to align two pieces of a fixture. The pin's head and shank diameters are concentric to within .0005" TIR. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | Yes | Yes |
Parts Specification
| A Head Diameter Nominal (mm) | A Head Diameter Actual (mm) | B Shank Diameter Nominal (mm) | B Shank Diameter Actual (mm) | C Diameter (mm) | D (mm) | E (mm) | F (mm) | G Diameter (mm) |
| 8mm | 7.997mm | 8mm | 8.025mm | 9mm | 12mm | 4mm | 23mm | 4mm |
