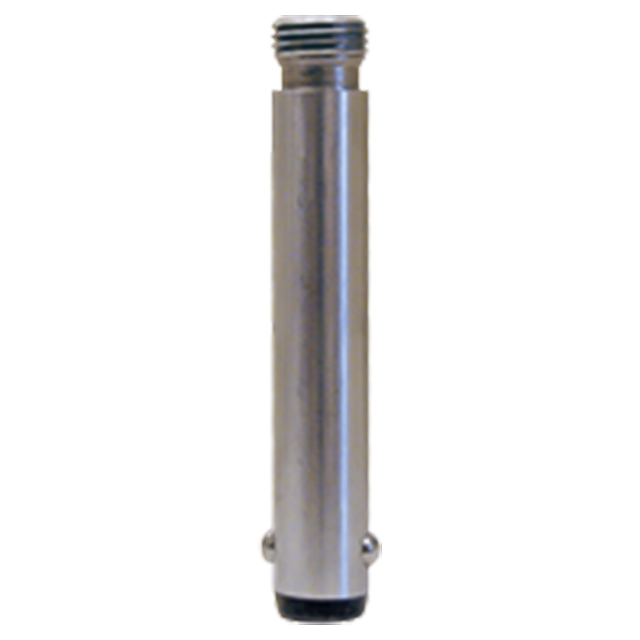

Threaded Detent Pins
have one end threaded for a knob handle. These quick-release alignment pins have a solid shank and spring-loaded locking balls. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.
The pin's threaded end accepts virtually any type of knob handle. Knobs can be permanently secured with thread-locking adhesive if desired (an adhesive such as Loctite 263 is suitable for most applications).
Application Information
The pin's threaded end accepts virtually any type of knob handle.
Material
Shank > 300-series stainless. Spring > 17-7PH/302 stainless. Balls > 440C stainless. DFARS and RoHS compliant.Click here for detailed material and finish specifications.
Parts Specification
| A Diamter Nominal (mm) | A Diamter Actual (mm) | Grip Length (mm) | B (mm) | C (mm) | D Thread | Thread Pitch (mm) | F (mm) |
| 8 mm | 7.95 mm | 20 mm | 9.22 mm | 9.11 mm | M6 | 1 mm | 10 mm |
