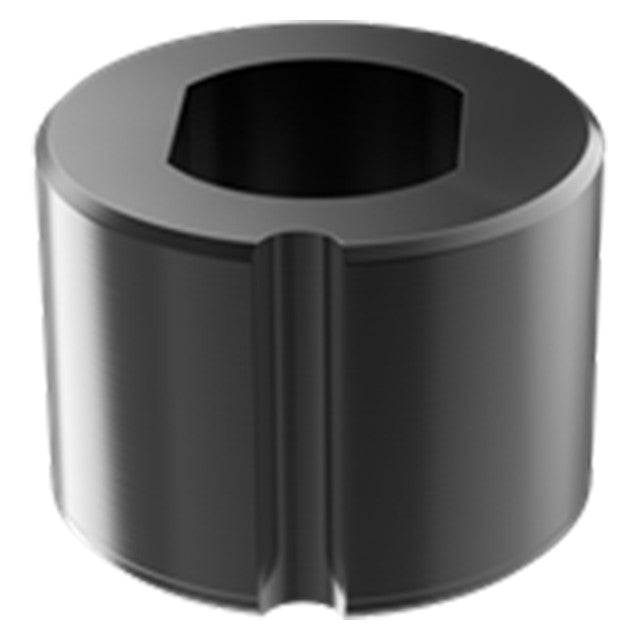

Slotted Locator Bushings
can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Made in USA.
Application Information
A standard press-fit P bushing (for primary location) and a Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.
Installation
To install, first drill and ream hole for roll pin (furnished), then bore large bushing hole for .0003-.0005" press fit. Press in bushing and roll pin simultaneously for accurate orientation.
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Bushing | Tool steel | Rc 58-62 | Black Oxide | Yes | Yes |
| Roll Pin | Spring steel | - | N/A | Yes | Yes |
Parts Specification
| Pin Diameter (mm) | A (mm) | B Diameter (mm) | C Diameter (mm) | L (mm) | M Diameter (mm) | N (mm) |
| 8mm | 8.003 / 8.028mm | 11mm | 24mm | 9mm | 5mm | 8mm |
